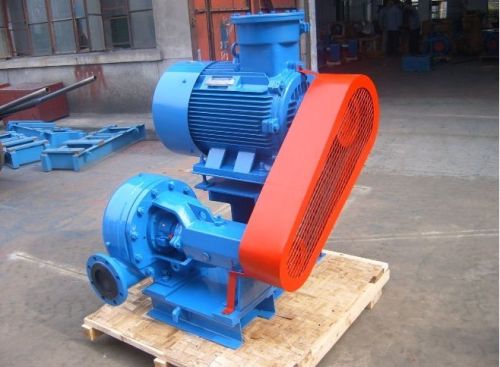

Drilling Mud Shear Pump

We are offering drilling mud shear pump.
mud shear pump is new tape equipment which provides the fast configuration and treatment mud for the user, the user satisfy with configuration high performance mud. This mud shear pump can mix effectively and hydrate completely the material added in the drilling fluid, save the mud material , reduce the time of configuration, and provide the high performance mud for the well drilling.
mud shear pump is a special purpose equipment of solids control system which can meet all customers’ requirements of preparing dilling fluid for the well drilling. This mud shear pump manufactured by tr company is used to treat the high property mud, make the mud to obtain good rheological properties and cut the drilling cost as much as possible. This ideal solids control equipment designed by tr’s engineers has high performance and gained customer’s high evaluation.
features
1 sufficient power and pressure
2 small footprint
3 break down drilling mud block
4 high quality raw material
5 excellent dilution and hydration ability
benefits
1 make drilling fluid transfer effectively
2 use less space, get more effective tank capacity
3 get more even drilling fluid
4 durable and low cost on maintenance
5 save much cost on drilling mud cost
mud shear pump is one kind of centrifugal pump. The type is overhead belt drive. This give the pump sufficient power and pressure. During operation,trjbq6535 driling mud shear pump can enhance the drilling mud hydratation level. Make ploymer dilute soon and save much drilling mud material. Finally cut down the well drilling cost. Come to tr mud shear pump manufacture to find more info on driling mud shear pump.
structure
mud shear pump applies axial suction stucture, consisting of motor,pump seat, pump shell, impeller,shearing impeller and other components. Vee belt and mechanical compound seal guaruantee no leakage. There is a stainless turbine inside(which composes entrance bucket, main impeller, nozzle,catch compartment)and a shear pump.
