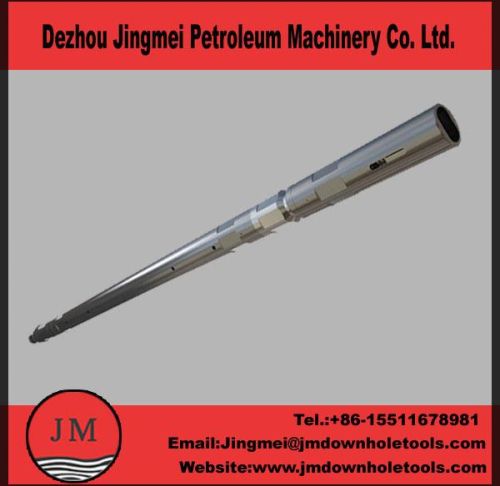

Drilling Tools Integral Blade Stabilizer

Quick Information
Brand Name: JingmeiPlace of Origin: China
Description
Integral Blade Stabilizer
HeKang provides integral straight blade stabilizer, integral spiral blade stabilizer, replaceable sleeve stabilizer, non-rotating stabilizer (rubber sleeve stabilizer), hard facing stabilizer,3-Piece sleeve replaceable stabilizer, float valve stabilizer, spherical stabilizer, variable diameter stabilizer, etc. All above products comply with API Spec 7.
Integral 3-spiral blade stabilizer, integral 4-spiral blade stabilizer (string type, near bit type). The working hardfacing surface (also called as wall contact) materials available separately are carbide insert, insert diamond compound, low temperature brazing tungsten carbide slug,surface bead welding abrasive welding rod,etc.
Technical Specifications and Parameters
(in) (mm) End OD
(mm) ID
(mm) Kit Length (mm) Connection
String type Near bit type
Top Down Top Down
6 152.4 121 51 1200 NC38 3 12 REG
6 14 158.7
6 12 165.1
7 12 190.5 159 57 1600 NC46 4 12 REG
7 78 200
8 38 212.7 159 165 71 1600 1800 NC46 NC50
8 12 215.2 159
165
178
8 34 222.2
9 12 241.3 178 197 1600 NC50 NC50 NC50
9 58 244.5 1800 6 58 REG
9 78 250.8
12 14 311.2 203 209 76 1800 NC56 6 58 REG NC56 6 58 REG NC56 6 58 REG 6 58 REG
16 406 229 241.3 2000 2200 NC61 7 58 REG NC61 7 58 REG NC61 7 58 REG NC61 7 58 REG
17 12 444.5
24 609.6
26 660.4
28 711.2
Packaging & Delivery
Packing :According to customer requirementsMinimum Order : 1 piecesSupply Ability : 600 setsyear
