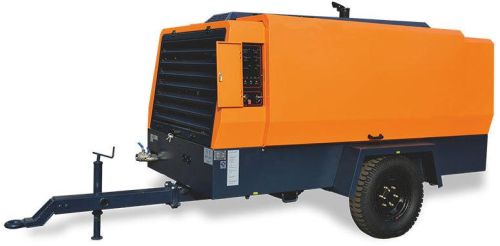

Drilling Using Diesel Movable Screw Air Compressor

Product Information Drilling Using Diesel Movable Screw Air Compressor  Diesel Movable Screw Air Compressor overloading SKF bearing, advanced single stage, secondary custom injection screw host; Energy saving products full range reached grade 2 energy efficiency, large displacement, more savings; The computer automatic control and protection system;. Volume control without omissions, unique electrical system 1 times larger than standard scope; Senior overloading of the supporting with security filter filter. Technical Parameter                   Product name HG750-16C HG800-20F HG950-20F HG700-18C HG980-24F Compressor Air Displacement 21 22 26 18 27 Discharge Pressure 16 20 20 18 24 Air End Model COMER AB-1900R COMER AA-1900RH BAOSI BGZ04 COMER AA-1900R BAOSI BGZ04 Compressed Class Single Single Double Single Double Oil Tank Capacity 130 211 211 130 211 Screw Oil Capacity 80 137 137 80 140 Engine Engine Model DongFeng Cummins 6CTA8.3-C260 DongFeng Cummins 6BTA8.9-C360 DongFeng Cummins 6BTA8.9-C360 DongFeng Cummins 6CTA8.3-C260 YUCHAI YC6MK400L-K20 Cylinder No. 6 6 6 6 6 Rotate Power 194 264 264 194 295 Rotate Speed 1900 2200 2200 1900 2000 Lubricating Oil Capacity 24 24 24 24 24 Coolant Capacity 60 60 60 60 60 Fuel Capacity 350 550 550 350 580 Whole Machine Drive Mode Direct Drive Direct Drive Direct Drive Direct Drive Direct Drive Joint Dimension 1-G2", 1-G1" 1-G2", 1-G1" 1-G2", 1-G1" 1-G2", 1-G1" 1-G1", 1-G2" Size
