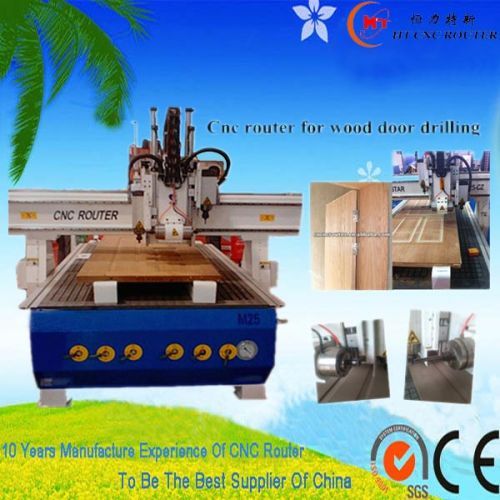

Drilling Wood Engraving Machine

We are offering water cooling suction ce sgs side drilling wood engraving machine.
application:
this equipment is particularly suitable for large scale processing of wooden door, furniture, cupboard, mould etc.
feature:
1. Three spindles have three different knives. One of them can work both vertically and from the side.
2. High efficiency tool changing system, high precision.
3. Vacuum table can work at diverse materials.
4. Dust absorption system can maintain the cleanness of machine.
5. Three axis adopt square orbit.
6. 5kw big torque air cooling spindle and imported bearing.
7. Z axis adopts servo motor, high stability and low failure rate.
8. Control system: nc studio, pci card.
description & specification
x working area 1300mm
y working area 2500mm
z working area 200mm
table size 1300x2500mm
traveling positioning accuracy â±0.05mm
repositioning positioning accuracy â±0.05mm
table surface by suction (t-slot, suction+t-slot can be choose)
x,y ,z structure xy gear wheel, y ball screw
max. Power consumption(without spindle) 1840w
max. Rapid travel rate 50000mmmin
max. Working speed 25000mmmin
spindle power motor water cooling 4.5kw, crosswise water cooling
spindle 3kw
spindle speed 0-24000rmin
drive system stepperservo
working voltage ac380v60hz
command g-code.
