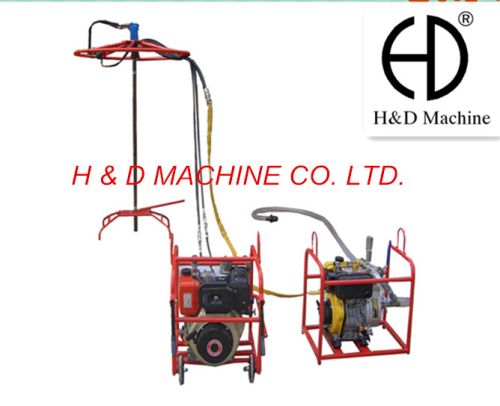

Drive Flush Drilling Rig, Brand Name : HAIDE

We offer drive flush drilling rig.
construction technology and applications: the blast hole, seismic drilling on soft formation.
layout of main rig and operation mode: hydraulic top-drive rotation,human lifting and dropping
advantages: light weight, easy to operate, more faster and cheap.
package: plywood case
main specification:
drilling methoddepth
mud drilling: 20 m air drillinghammer drilling: 20 m
pipe(diameter×length): φ42×1500 hole diameter:75mm90mm82mm
hand-disk power swivel: torque: 270 n.m rotate speed: 0～148 rmin
weight: 20 kg disk radius: 800~1250mm options
hydraulic pumping station: working pressure: 200 bar
station power: 9hp
station weight: 82kg diesel engine, 60kg gasoline engine
centrifugal pump set standard:
displacement 680 lmin
pump head: 27 m
gasoline engine power: 6.5 hp
weight: 31 kg
air screw compressor set options:
displacement: 3.2 m3min
pressure: 7 bar
gasoline engine power: 38 hp
weight: 196 kg
