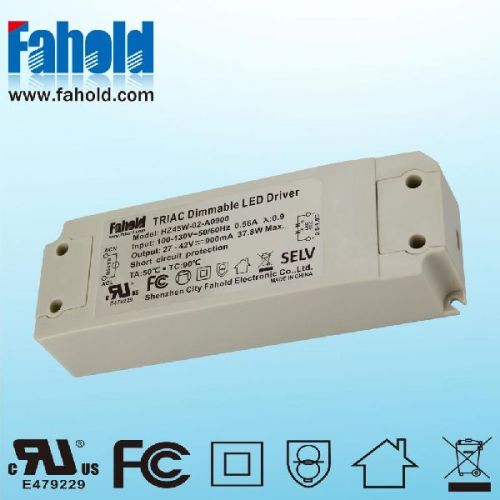

Driving Lights Triac Dimming LED Driver

Driving Lights Triac Dimming Led Driver Details   HZ48W-02 Series, Hard Shell triac dimming Driver, with wattage range of 25W to 48W , UL,FCC,CE compliant. Fully Tested Design for Use in Integral LED DownlightTroffer Fixtures or as Stand Alone LED Driver Module. This design is optimized for a 1150mA (max) LED output current and LED stack voltages ranging from 27 V to 45 V. Standard features of this LED lighting driver include short circuit, over load, over voltage & over temperature protections and the unit is designed to meet UL8750,  EN61347-1, EN61347-2-13 and emmisions to EN 55105, EN61547. Features & Benefits · High PFC · Lightweight    UL Listed · Single channel output, output current level selectable by DIP S.W. · Wide range of input voltage 100VAC ~ 130VAC · High efficiency up to 86% · Built-in active PFC function · 100% output  dimming signal input, can be used as normal power supply · Protections: Short circuit,over load, over voltage & over temperature protections · Suitable for indoor LED lighting application Product Specs: Output voltage:27-42V Max. Output wattage: 45W Max. Output Current: 1150mA Dimensions:135x46x32 mm Efficiency:86% EncironmentIP Rating: indoorIP20 Max. Input voltage:130V Certificate: UL,FCC,CE   HZ45W-02 , Desigen for high lumen led Downlights, Energy saving driver. Its housing was made out of strong plastic.
