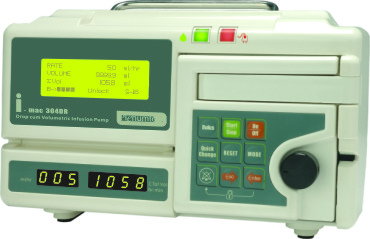

Drop Infusion Pump

1.3 Modes of Infusion
a.drop Rate Mode
b.volume Target Mode
c. time Target Mode
2.4 Liners X 20 Character Lcd as Well as 7 Segment Led Display for Infusion Parameter Status
3.facility to Set Default Mode, Default Set, Default Unit, Alarm Volume, Kvo Rate & Idle Alarm Time
4.infusion Parameters and Data Entry By Encoder Knob
5.free Flow Protection in Case of Accidental Door Opening.
6.flexible and External Drop Sensor
7.option for Selection of Unit for Flow Rate in Terms of Drop/min or Ml/hr and Volume in Terms of Drops or Ml
8.rate Up to 450 Ml/hr.
9.build in Battery, 8.4v, 2.5 Ahr Ni-mh Battery for Increased Durability
10.external Power Supply, Ac Input Range 170~ 270 Vac, Frequency 50 ~ 60 Hz, 12 Volts, 1 Amp Dc Output Supply
11.facility to Change the Infusion Parameters During Infusion Without Stopping the Infusion
12.bolus & Purge Facility.
13.adjustable Kvo Rate from 1 To5 %
14.keypad Locking Facility
15.rs 232 Port for External Communication and Facility to Upgrade Software
16.housing & Construction
•compact and Robust a.b.s Plastic
•weight approx. 2.4 Kgs.
•dimensions approx. 250(l), 145(h), 90(w)
•mounting on a Pole or a Bed-frame
