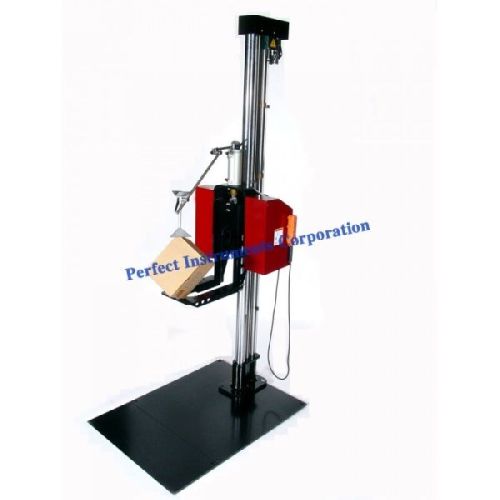

Drop Tester

Get Latest Price

Compressed air requirement for Pneumatic Model (To be provided by user)5 kg/cm2
Max.weight of the test package75Kg
Max. weight of the test package50Kg
Drop Height with interval of everyMax. 2000mm Min. 700mm 75mm
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Perfect Instruments Corporation

Canada Corner, Nashik, Maharashtra

View Number

Member Since 11 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Max. size of the required Height600 x 600 x 600 mm
IS7028(Part IV)-1973
Max. weight of the test package50Kg
Floor space requirement Height1100 x 880 mm 2250 mm
Drop Height with interval of everyMax. 2000mm Min. 700mm 75mm
Floor Space Height1100 * 880 mm 2450mm
Compressed air requirement for Pneumatic Model (To be provided by user)5 kg/cm2
Power Requirement for Pneumatic Model0.5 kWSingle Phase 220 Volts
Drop heightsMax. 1500 mm Min 750 mm
Max.size of the package600*600*600mm
Max.weight of the test package75Kg

Product Description

Features:

A precise and reliable machine.
Sturdy in construction.
Precisely machined to International Standards.
Fitted with angular Drop arrangement- for checking transport-worthiness from all angles.
Costs less than half of the similar imported tester- saves valuable foreign exchange too.
Facility to corner drop.

Additional Features of Pneumatic Model:

Box can be lifted or lowered to specific height using electric motor.
Remote push button operated operation for drop.

Essential for quality control and development for consumers of corrugated and solid fiberboard, shipping containers, etc. Ascertains transport worthiness of the container.

Operation

A box attached to a vertical column is provided with mechanism to release the resting table instantaneously. For easy adjustment of the drop heights this box is balanced by a counter-weight over a pulley. Package under test is placed on the resting table. By pressing the lever on the box, the package is allowed to fall on the platform at the bottom. The fall is straight and perfectly vertical. The machine is sturdy and easy to operate.

Technical Specifications of Mechanical Model

Additional Features of Pneumatic Model:
