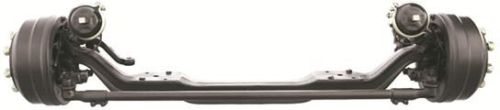

Drum, Disc Brake Front Axle Assembly

Drum/disc brake front axle ass'y
model ch45f
nominal load(kg) 4200~4500
wheel tread(mm) 2036(drum brake)2074(disc brake)
kingpin inclination（°） 7°
caster angle（°） 0°
kingpin camber（°） 1°
kingpin distance（mm） 1847(drum brake)1840.6(disc brake)
tie-in(mm) 0~5
max.turning angle(°) inner41°/outer33°（drum brake）
inner40°/outer31°disc brake）
drum brake spec.(mm*mm) ∮400*130
disc brake spec.(mm*mm) 19.5"
axle weight(kg) 400(drum brake)420(disc brake)
matching model 9~10.5m bus
ch45f performance features
1.        higher generality meets requirement of mid class buss.
2.        high rigidity, low weight of front axle, economic fuel consumption.
3.        bigger inner steering angle, excellent maneuverability.
4.        adjustable tie rod makes flexible toe-in available, service life of tire prolonged.
5.        reasonable king pin incidence improved steering stabilization.
6.        optimized outer camber prolonged service life of tire.
7.        most domestic suspension structure matchable.
8.        both domestic and abroad disc brakes optional.
9.        widened shoe of drum brake suitable for various asa.
10.    standard abs enhanced vehicle stabilization and controllability.
