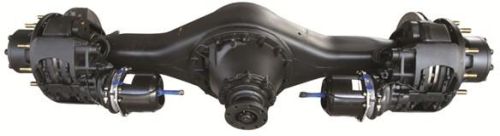

Drum/disc Brake Rear Axle - (ch13hb)

We are offering drum/disc brake rear axle ch13hb.
drum/disc brake rear axle
model ch13hb
nominal load(kg) 11000
wheel tread(mm) 1860
max. Troque output (n.m) 30000
housing spec.(mm*mm) 158*158*14
ratio 3.818/3.909/4.10/4.333/4.444/4.875/
5.125/5.143/5.571/6.166/6.333/6.5/6.833
drum brake spec.(mm) ∮410*220
disc brake spec 22.5"
axle weight(kg) 690(drum brake)630(disc brake)
matching model 10~12m bus
ch13hb performance features
1.        fine grinding gear sets ensure low noise.
2.        low weight, economic fuel consumption.
3.        efficient drive unit meets torque requirement of euro iv engine.
4.        various ratio makes reasonable vehicle motivity.
5.        stamping welding structure, most domestic suspension matchable.
6.        optional caliper according to different demand (disc brake).
7.        optional asa according to different demand (drum brake).
8.        standard abs enhanced vehicle stabilization and controllability.
9.        high generality of rear axle of 10-11m bus.
