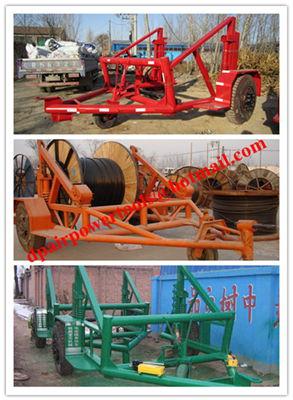

Drum Trailer, Cable Winch

We are offering drum trailer, cable winch, cable drum trailer
specifications
drum trailer,cable winch,cable drum trailer,cable trailer,cable drum table,cable drum carriage
cable reel puller, cable reel trailer,reel cable trailer--bazhou dpair power tools
1. Iso9001 certificate2.uses in the large-scale reel laying3.many kinds of specification
cable drum trailers --bazhou dpair power tools
useage : this strong cable drum transport and laying trailer uses the power shifting gear technology,uses nimbly convenient. Uses in loading and unloading, the transportation, the large-scale reel cable laying .
mechanical cable drum trailer
application: used for cable drum hauling and cable pulling-pushing. Adopt mechanical lifting method, simple operation, stable and durable. The traction tire on the font of cable trailer can change angle at random and easy to move. Equipped with damping device, the stability of trailer was increased greatly. Remarks: the trailer can be transported by container after disassembly.
please contact us if you have any requirement, and we can make products with special specification as your requirements.--bazhou dpair power tools
product no. rated load applicable drum diameter applicable drum width axle bar diameter dimension of main body
dhtc-3 3t ≤φ2400mm ≤1400mm φ76mm 3800mm×2300mm×2200mm
dhtc-5 5t ≤φ2800mm ≤1600mm φ90mm 4000mm×2600mm×2500mm
dhtc-8 8t ≤φ3400mm ≤1800mm φ120mm 4300mm×3200mm×2700mm
dht-10 10t ≤φ3600mm ≤2000mm φ150mm 4600mm×3800mm×2900mm
hydraulic cable drum trailer--bazhou dpair power tools
application: used for cable drum hauling and cable pulling-pushing. Equipped with hydraulic hand device, can lift cable drum easily. The traction tire on the font of cable trailer can change angle at random and easy to move. Equipped with damping device, the stability of trailer was increased greatly. Remarks: the trailer can be transported by container after disassembly.
please contact us is you have any requirement, and we can make products with special specification as your requirements.
product no. rated load applicable drum diameter applicable drum width axle bar diameter dimension of main body
dh3050-3 3t ≤φ2400mm ≤1400mm φ76mm 3800mm×2300mm×2000mm
dh3050-5 5t ≤φ2800mm ≤1600mm φ90mm 4000mm×2600mm×2200mm
dh3050-8 8t ≤φ3400mm ≤1800mm φ120mm 4300mm×3200mm×2400mm
d3050-10 10t ≤φ3600mm ≤2000mm φ150mm 4600mm×3800mm×2600mm
