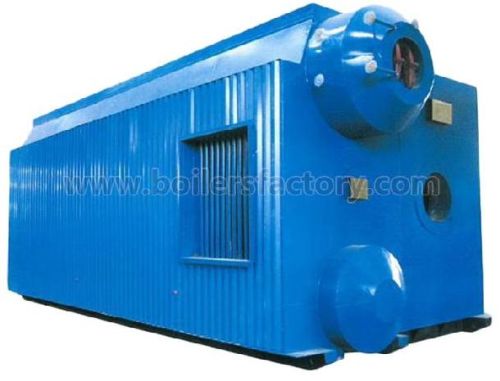

Drums Hot Water Boiler

CSZS Double Drums Hot Water Boiler

Capacity: 4.2mw/h - 14mw/h

Pressure: 0 Mpa

Fuel: Natural gas, lpg, Light Oil, Diesel, Heavy oil,dual fuels.

Double Drums Hot Water Boiler Introduction

CSZS series boiler body is double-drum, horizontal with D-type combustion chamber, the furnace is on the right, and the convection tubes on the left, movable supports in the midst and both sides of the furnace are mixed into the bottom plate of the boiler body, making sure that the boiler is expanding toward both sides in the whole. The furnace has narrow pitch pipe membrane water cooling walls in the surrounding, the membrane water cooling wall on the left of the furnace is completely sealed from the convection tubes. Behind the convection tubes is the sparse staggered structure, at the front is the aligned structure. The smoke from the burning in the combustion chamber leaves from smoke output at the back part of the furnace, enters into the burnout chamber and convection tubes, and then into finned tube economizer and condenser, and finally into the chimney by the flue and finally into the air.
