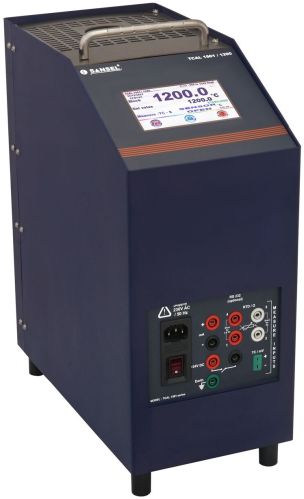

Dry Block Temperature Calibrator TCAL 1501 / 1200

SANSEL Model TCAL 1501 series of Dry well Temperature calibrator range from - 30 to 1200°C in four model (TCAL 1501 / -30, TCAL 1501 / 300, TCAL 1501 / 600 & TCAL 1501 / 1200) are high precision, better resolution, stability, fast in heating and cooling. More well dia and depth to calibrate more number of temperature sensor at a time with better uniformity.

These models can meet any calibration requirement in laboratories or in on site applications. This models are inbuilt measuring facility of the Thermocouples, RTD, Resistance, millivolt & milliamps to directly read the signals from most of the temperature sensors, indicator with sensor and Transmitter. Temperature range from 300 to 1200°C with high resolution 0.1°C up to 1200°C. This model is mainly used in all industries, like metal moulding, glass, ceramic & calibration laboratories etc.,

These models are using 4.3” True colour TFT display with Touch screen, easy to read multi parameter at the same time like, Block temperature, set temperature, measure value, Real time clock with date & time, Control Output %, Stability time & status, Range of the equipment with necessary unit of measurement and three soft touch keys are used for measure configuration, settings, calibration etc.., It has one more advantage of help menu for operating instruction of the equipment via the same screen , Hence no need of Hard copy of Instruction manual.

• Model: TCAL 1501 / 1200

• Display: 4.3” True TFT LCD Display with Touch screen

• Temperature Range: 300 to 1200°C

• Resolution: 0.1°C

• Stability: Better than ± 0.5°C

• Radial uniformity: Better than ± 2°C

• Stabilization Time: 30 minutes

• Temperature readout: °C

• Heating time: 50 mins (Amb. to 1200°C)

• Cooling time: 120 mins (1200 to 100°C )

• Well Dimension: 39 x 180 x 140 mm (dia x height x depth)

• Standard well holes in mm: 5.2, 6.2, 6.2, 10.1 & 12.1

• Power supply: 230V AC ± 10% / 50Hz (Optional 110V AC)

• Power Consumption: 1900 VA

• Overall Dimension in mm: 340 x 175 x 425 (L x B x H) (Approx.)

• Weight: 18 kg (without well insert) (Approx.)
