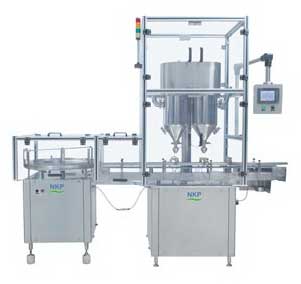

Dry Powder Filling Machine (AF-D-100)

Company Information

Ask for more detail from the seller

Report incorrect details

Following are the Features

Total cGMP model.
Servo based Control for filling System
Contact parts of S.S. 316L
Machine can handle bottle size from 15ml to 125ml.
â��NO Bottle, NO FILLâ�� system eliminates wastage of costly powder.
High & Low Level Powder Sensor in Hopper
Imported Delrin Conveyor to avoid any stickiness of Powder on conveyor
Machine speed can be adjusted through A.C. Frequency drive, which is time saving.
Pneumatic bottle holding system is connected with auger rotation, which eliminates chances of bottle transfer before completion of filling operation.
PLC System with Touch Screen HMI.
Fill weight can be adjusted from HMI only.

Model No.	AF-D-100
Direction	Left to Right
Production Rate	50 to 60 Bottles/Minute
Fill Capacity	5 grams to 50 grams (with different set of Auger and funnel) Fill range depending upon Bottle opening and bulk density of powder.
Accuracy	+ 2% depending upon consistency and the uniformity of Bulk Density of powder under controlled level of Humidity (i.e. 35%)
Electrical Supply	3 H.P.
Power Requirement	415 volts, 3 Phase (4 wire System) 50 Hz.
Height of Conveyor	Adjustable from 900 to 950MM Adjustable.
Dimensions	2400 MM (L) x 1100 MM (W) x 1800 MM (H).
Net Weight	550 Kgs. (Approx).
Gross Weight	800 Kgs. (Approx).
