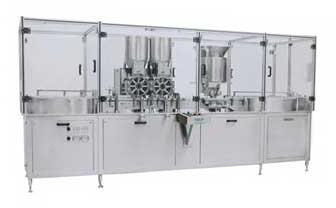

Dry Powder Filling Machine (NKPF-400D)

MaterialS.S. 316L, M.S Frame Structure Powder Coated, S.S. Sheet, Aluminium
SpecialitiesCGMP Model, NO VIAL NO FILL System, Pre & Post Gasing Unit, Multiple Dosing Capability, High Quality Gear Motor, A.C. Frequency Drive
Capacity5ml To 30ml
UsageInjectable Powder Filling, Vial Filling
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

Ask for more detail from the seller

Report incorrect details

ModelNKPF-400D
Number Of FlowerDry Powder Filling Machine
MaterialS.S. 316L, M.S Frame Structure Powder Coated, S.S. Sheet, Aluminium
Capacity5ml To 30ml
SpecialitiesCGMP Model, NO VIAL NO FILL System, Pre & Post Gasing Unit, Multiple Dosing Capability, High Quality Gear Motor, A.C. Frequency Drive
UsageInjectable Powder Filling, Vial Filling
Additional InfoMachine Speed Adjustable, Humidity Control Feature, Easy Maintenance Design

Following are the Features

Total cGMP model.
Contact Parts of S.S. 316L
M.S Frame structure duly powder coated and covered with S.S. Sheet
Machine can Handle vial range from 5ml to 30ml (With the help of Change parts)
â��NO VIAL, NO FILLâ�� system eliminates wastage of costly powder.
â��No Rubber Stopper in Chute, Machine stopâ�� System.
Pre & Post Gasing Unit.
Acrylic Cabinet with Aluminium Structure to maintain the humidity on Machine.
All Assemblies under top plate are positioned as for easy cleaning or maintenance.
Multiple dosing of injectable powder or change over of container size and different fill size is possible by just changing the vial separator or size of the piston respectively.
All driving is through High quality imported Gear motor for better machine performance without vibration or leakage of oil of area floor from gear box.
Machine speed can be adjusted through A.C. Frequency drive, which is time saving and easy to synchronize unscrambler and scrambler speed with machine speed.
Machine is provided with delrin conveyor belt to avoid sticking of vial on conveyor.
Special clutch devices are provided on vial separator for safety purpose.
Vibrator bowl for rubber stoppering unit support to run machine with total claimed speed of machine.
Air filter cartridge is of Nylon Make of 0.22 micron with S.S. 316 Housing
Vacuum filter cartridge is of Nylon Make with Housing of PVC transparent material

Model No.	NKPF-400D
Direction	Left to Right
Production Rate	Up to 240 Fills /Min for Single Dose. Up to 240 Fills /Min for Double Dose. Up to 80 Fills /Min for Triple Dose. Up to 120 Fills /Min for Four Dose.
Fill Capacity	50 Mg to 1.5 Grms. Single Dose (with Change parts).1.5 Grms. to 6 Grms. Double, Triple and Four Dose. Fill range depending upon vial opening and bulk density of powder.
Accuracy	+ 1% depending upon consistency and the uniformity of bulk density of injectable powder under controlled level of Humidity (i.e. 25%).
Electrical Supply	8.0 HP
Power Requirement	415 volts, 3 Phase (4 wire System) 50 Hz.
Height of Conveyor	Adjustable from 900 to 950 MM Adjustable.
Dimensions	3760 MM (L) x 1000 MM (W) x 1740 MM (H).
Net Weight	1400 Kgs. (Approx).
Gross Weight	1850 Kgs. (Approx).
