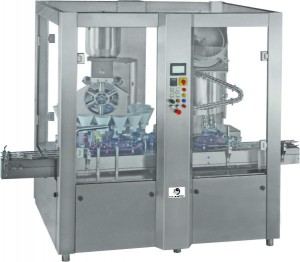

Dry Syrup Filling Machine

High Production Capacity in High Filling Quantity also.
M.S. Molded structure duly powder coated to avoid any vibration with adjustable Screws to adjust conveyor height as per in feed tunnel.
Total Compact Monoblock CGMP model.
All parts and assemblies coming in contact with powder are made of S.S.316
“NO BOTTLE, NO FILL” System eliminates wastage of costly powder.
Spring loaded Teflon top seal for powder hopper reduces the friction between and top seal and avoid chance of white particle shading during production.
Doctor blade and wiper blade can be adjusted from outside also without disturbing any production, which saves lot of time, powder wastage and chances of area condition disturbance.
All assemblies under top plate are positioned as for easy cleaning or maintenance.
All driving is through High quality imported Gear motor.
Machine speed can be adjusted through A.C. Frequency drive, which is time saving.
Machine is provided with Delrina conveyor belt to avoid sticking of bottle on conveyor.
Special clutch devices are provided on Star wheels for safety purpose.
Air filter will be of S.S.316 housing with Nylon cartridge for proper removal of particle of 0.22 micron having 10″ length.
Vacuum filter will be of PVC transparent material with nylon cartridge having length of 10″ of 5 micron.
Machine can fill 10 grams to 70 grams powder in single stroke.
