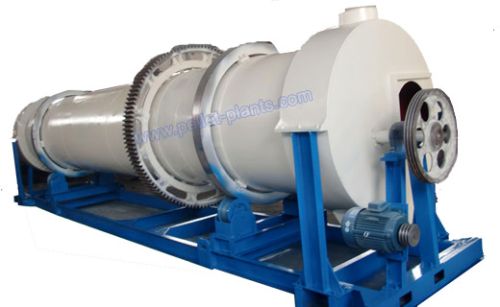

Drying Machines

We are offering drying machines.
Wide application
1. Agriculture, feed and fertilizer industry, such as straw, grass, leaves, wood chips, fish feed, organic fertilizer, etc.2. Powder or granular materials of special drying requirements, such as a variety of crystals, magnetic powder, lime and so on.3. Chemical industry, metallurgical and other industries, such as ore, coal, metal powder, clay.
characteristics
1. Large handing capacity and low energy cost and investment, it is high flexibility, reliable operation and large processing capacity.
2.high drying speed. The dryer is of good thermo stability, using high temperature to dry the material quickly
3.high overloading capacity. Even though there is a little increase in the handing capacity, it does not need to replace equipment.
4.the special design of gear wheel structure can greatly reduce the horizontal force produced by the oblique rotary drum.
rotary drum dryer technology parameter
model inclination rotary speed air temperature power capacity weight
trm-gthg0606 3-5% 3-8r/min ≤700℃ 3kw 0.5-1.5t/h 2.9t
trm-gthg0808 3-5% 3-8r/min ≤700℃ 3kw 0.8-2.0t/h 3.5t
trm-gthg0810 3-5% 3-8r/min ≤700℃ 3kw 0.8-2.5t/h 4.5t
model power capacity reduced moisture trm—qlhg22 5.5 kw 380—560kg 10—15% trm—qlhg36 7.5 kw 500—700kg 15—25%
