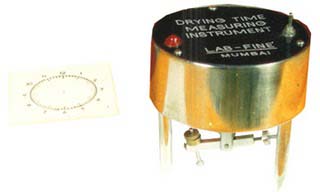

Drying Time Measuring Instruments

Drying Time Measuring Instrument is developed and designed by us for measuring the drying time of coating which is applied on paper or metallic panel. It is very handy and available in various sizes. It is precisely engineered by our experts at our high-end manufacturing unit. We are a renowned Dry Time Measuring Instruments Manufacturer, Exporter and Supplier in Mumbai, Maharashtra.

Working Principle :

• A ballpoint travels on the wet film at a constant speed. This ballpoint leaves the traveling path on the film
• This speed is proportional to time piece (watch) mechanism
• When the coating of film starts drying, it becomes hard slowly
• At this junction the ballpoint get lifted above the dry film and shows the rubbing path on film
• After completion of one circle of ballpoint observe the path. Mark the starting point and the point of rubbing action, which indicate the drying point

Different Least counts :

• For a model having one revolution 12 minutes the least count would be 1 division (natural 1 min) mark on gauge i.e. 12 second
• For a model having one revolution of 6 hours the least count would be of 1 division (natural 1 min) mark gauge i.e. 6 min
