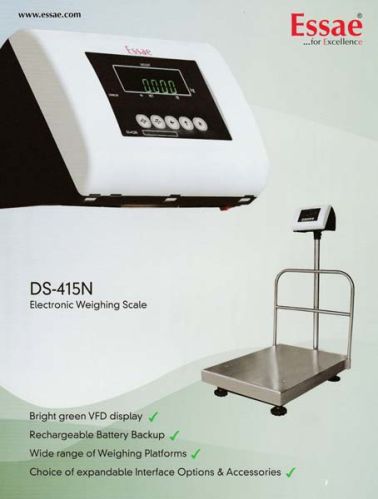

DS-415N Platform Scale

Min. Order Quantity,
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

DS-415N Platform Scale is ideally suited for weighing in manufacturing and process industry, retail and provisional stores. The Platform Scale can weigh upto 1000 kg with the help of one....

View More Details

Send Enquiry

Product Details

DS-415N Platform Scale is ideally suited for weighing in manufacturing and process industry, retail and provisional stores. The Platform Scale can weigh upto 1000 kg with the help of one Loadcell Platform. In all Platform Scale has four loadcell platform of which are of strong, rugged and superior quality. We also provide servicing of DS-415N Platform Scale.

Highlights

High accuracy.
Strong and rugged platform
Large and bright green fluorescent display for easy readability under any conditions.
Wide variety of platforms of different capacities and sizes to suit every weighing need.
Battery back up
Wide choice of useful options.

Options

In-Built RS-232 interface
Set point (Inbuilt)-TTL level
Set point (External)-relay output
Serial printing interface
kg to ltr conversion
Remote display(wall/table mounting)

Note : Above options are not applicable for 370 x 370 Bench Scale

Technical Specifications

Power supply	230V AC, 50Hz
Power consumption	13W
Operating temperature / humidity	0 ^oC to 45 ^oC / 85%RH Max. (Non-condensing)
Display type	Green Vacuum Fluorescent Display (VFD)
Display digit	6 Digits
Display size	13mm
Number of keys	5 Keys
Battery charger	Inbuilt
Rechargeable battery	6V / 10Ah
