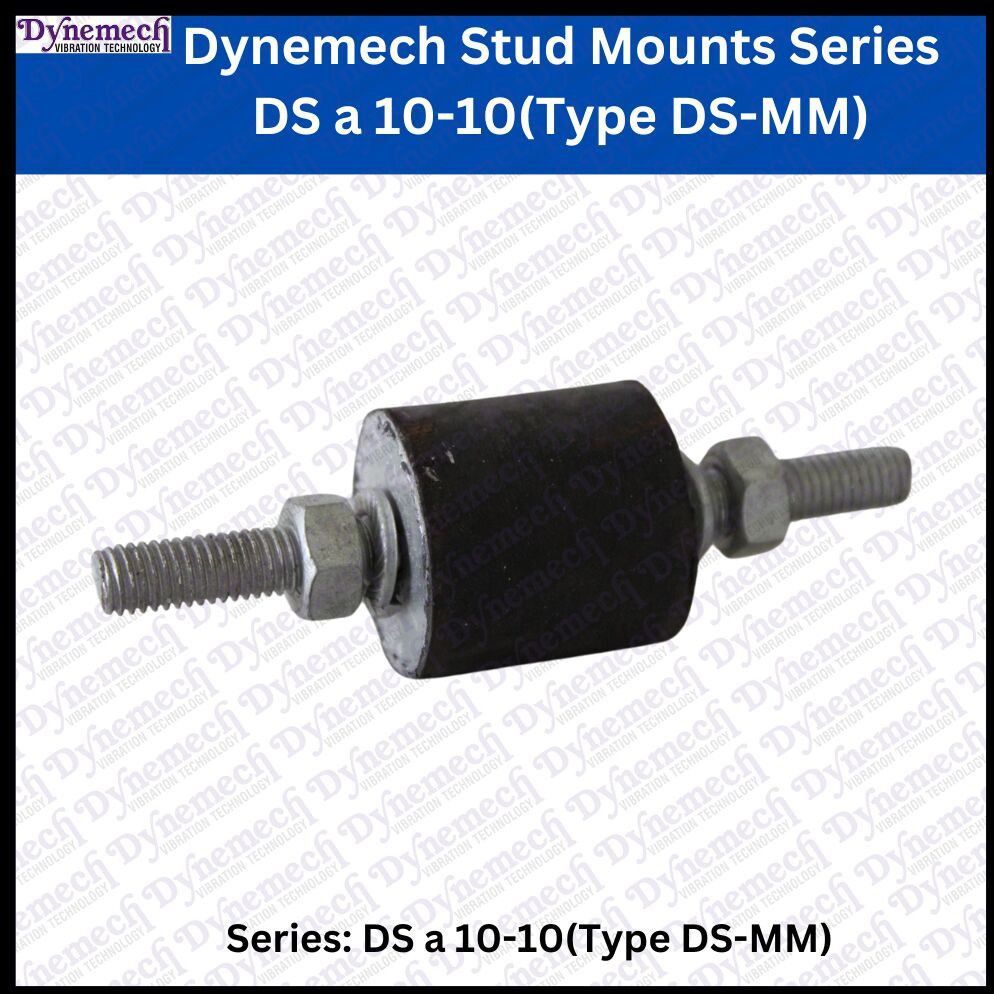

Dynemech Rubber Stud Mounts Series - DS a 10 10

Dynemech Stud Mounts, Series DS are highly effective and compact vibration dampers for a varity of applications like- Compressors, Pumps, ID & FD fans, Motors, Machine tools, Gensets, Air Conditioners, Measuring and Testing Equipment / Instruments, Material Handling Equipment, Laboratory etc. These mounts can be used for load applications in both compression and shear.

Model: DS a 10-10 Load (Kg): 2Kgs to 20500Kgs Height: (10 to 125)mm Dia (mm): (10 to 250)mm Length: (16 to 80)mm G Thread: (M4 to M24) Natural Frequency (Hz): (12 to 8)Hz Thickness: 10 mm to 125mm Hardness: (40-45)mm to (90-92)mm Material: Low Carbon Steel(IS 2062), Neoprene and Nitrile Colour: Silver/Black Surface Finishing: Painted/Power Coated Temperature: (-20 to +70°C) 4 Nos. Weight: 50 gm Delivery Time: 1/2 day No. of Boxes: 1 Box Dimension: 2"x2"x2" Production Capacity: 300 pieces per day Price Range: Rs.140/- per piece

Note- GST and Freight Charges are not included.
