DSE7320 Generator Controllers

Generator controllersdse7320
auto mains (utility) failure control modules

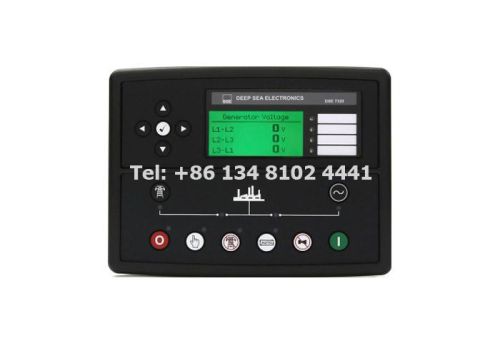

the dse7320 is a feature packed auto mains (utility) failure control module designed to control single diesel or gas gen-set applications.
Overall size
240 mm x 181 mm x 42 mm (9.4” x 6.8” x 1.6”)
panel cutout size
220 mm x 160 mm (8.7" x 6.3")
maximum panel thickness
8.0 mm (0.3”)
weight
0.86kg
product variants
7320-01 - 7320 auto mains (utility) failure control module
7320-02 - 7320 auto mains (utility) failure control module (htr)
specification
dc supply
continuous voltage rating
8 v to 35 v continuous
cranking dropouts
able to survive 0 v for 50 ms, providing supply was at least 10 v before dropout and supply recovers to 5 v. This is achieved without the need for internal batteries.
Leds and backlight will not be maintained during cranking.
Maximum operating current
340 ma at 12 v, 160 ma at 24 v
maximum standby current
160 ma at 12 v, 80 ma at 24 v
charge failexcitation range
0 v to 35 v
mains (utility)
voltage range
15 v to 415 v ac (ph to n)
26 v to 719 v ac (ph to ph)
frequency range
3.5 hz to 75 hz
outputs
output a (fuel)
15 a dc at supply voltage
output b (start)
15 a dc at supply voltage
outputs c & d
8 a 250 v (volt free)
auxiliary outputs e,f,g,h
2 a dc at supply voltage
generator
voltage range
15 v to 415 v ac (ph to n)
26 v to 719 v ac (ph to ph)
frequency range
3.5 hz to 75 hz
magnetic pick-up
voltage range
+- 0.5 v to 70 v
frequency range
10,000 hz (max)
