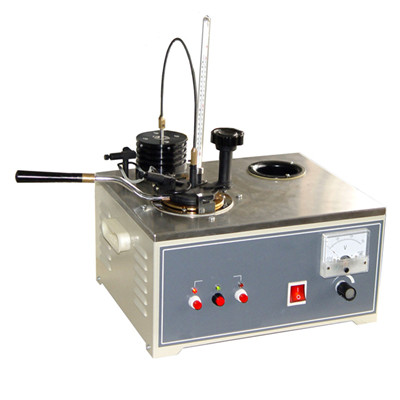

DSH-261 Pensky-Martens Closed Cup Flash Point Tester

1.Power supply:AC (220±10%)V, 50Hz.
2.Heating device::The heating power is continuously adjustable from 0 W to 600W.
3.Rate of sample's heating up:(1-12)°Cmin.Controllable and adjustable.
4.Electric stirring rate:(1)(90-120)turnsmin,suitable to test procedure A.
(2)(250±10)turnsmin,suitable to test procedure B.
5.Standard oil cup:(1)Inner diameter: 50.7mm-50.8mm.
(2)Depth: 55.7mm-56.0mm.
(3)The scribed line depth of capacity of testing oil: 33.9mm-34.3mm.
(4)Capacity of testing oil:about 70ml
6.Igniting device:(1)Igniting source: gas(or other civilian fuels,the same below)
(2)Bore diameter: 0.8mm
7.Thermometer:Mercurial thermometer, correspond with GBT261-2008
(1)Scale -5°C-110°C, division 0.5°C。
(2)Scale 20°C-150°C, division 1°C。
(3)Scale 90°C-370°C,division 2°C。
8.Ambient temperature: no more than 35°C
9.Relative humidity: no more than 85%
10.Power consumption of overall unit: no more than 650W
