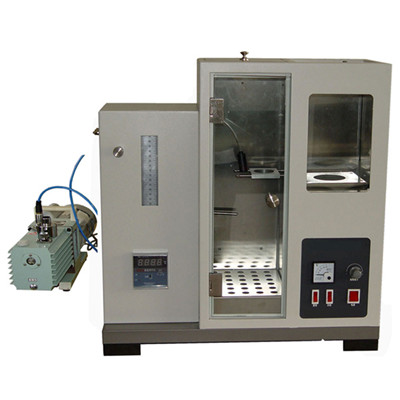

DSHD-0165 Vacuum Distillation Tester

A:brief description:
　 dshd-0165 vacuum distillation tester is designed and made as per the industry standard of people's republic of china sht0165-92 test method for distillation of high boiling point of petroleum products at reduced pressure.
Dshd-0165 vacuum distillation tester is applied to determine the distillation characteristics of wax oils, lubricating oils and other high boiling point petroleum products.
B: main technical features:
1. Power supply: ac 220 v±10%, 50 hz
2. Heating power:
(1) heater for distillation flask: 1000 w
(2) heater for receiving flask: 350 w
3. Heating power for distillation flask: 0w to 1000 w, adjustable
4. Temperature range for air bath of receiving flask: room temperature to 100 °c
5. Temperature sensor in the air bath: pt100 platinum resistance
6. Temperature controlling mode for air bath: by a temperature controller
7. Temperature controlling accuracy: ±1 °c
8. Cubage of buffer vessel: 1000 ml
9. Max. Residual pressure of vacuum pump: no more than 2 mmhg
10. Illumination light in the air bath of receiving flask:
electricity-saving lamp
11. Working condition:
(1) ambient temperature: 5°c to 35 °c
(2) relative humidity: no more than 85%
