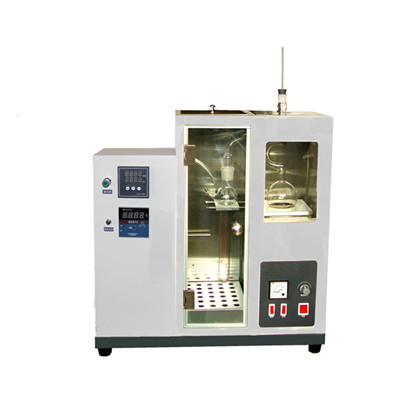

DSHD-0165A Vacuum Distillation Tester

A:Brief description:
　 DSHD-0165A Vacuum Distillation Tester is designed and made as per the industry standard of People's Republic of China SHT0165-92 Test Method for Distillation of High Boiling Point of Petroleum Products at Reduced Pressure.
DSHD-0165A Vacuum Distillation Tester is suitable to determine the distillation characteristics of high boiling point petroleum products, such as wax oils, lubricating oils, etc.
B: Main technical features:
1. Power supply: AC 220 V±10%, 50 Hz
2. Heating power:
(1) Heater for distillation flask: 1000 W
(2) Heater for receiving flask: 350 W
3. Heating power for distillation flask: 0W to 1000 W, adjustable
4. Temperature range for air bath of receiving flask: room temperature to 100 °C
5. Temperature sensor in the air bath: Pt100 platinum resistance
6. Temperature controlling mode for air bath: Automatically control by digital display temperature controller
7. Temperature controlling accuracy: ±1 °C
8. Cubage of buffer vessel:1000 ml
9. Max. Residual pressure of vacuum pump: no more than 2 mmHg
10.Digital display pressure meter: Absolute pressure(0-200) mmHg
11. Illumination light in the air bath of receiving flask: Energy-saving fluorescent lamp
12.Working condition:
(1) Ambient temperature: 5°C to 35 °C
(2) Relative humidity: no more than 85%
