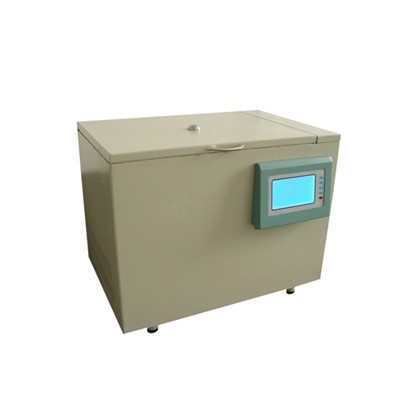

DSHD-17623 Automatic Multifunctional Degassing Oscillation Tester

A:Purpose:
DSHD-17623 Automatic Multifunctional Degassing Oscillation Tester is designed according the National Standard GBT17623 "Test Methods for Componential Contents of Gases Dissolved in Insulating Oil by Gas Chromatography Method".
DSHD-17623 Automatic Multifunctional Degassing Oscillation Tester applies to separate gas dissolved in the insulating oil by oscillation methods.
B:Technical specifications:
1. Controlling time:
2. Power: 1000 VA;
3. Temperature controlling accuracy:
(1) Room temperature-50°C: ±0.2°C;
(2) 50°C-80°C: ±0.3°C;
4. Oscillation frequency: 275±3 timesmin;
5. Oscillation amplitude: 35 mm;
6. Display: By a large LCD;
(1) Set temperature from 0 to 99 °C;
(2) Oscillate for 5 min, still it and make an alarm. Keep constant at 70 °C;
(3) Set oscillation time and still time as your requirement from 0 to 99 min;
(4) Oscillate for 20 min, still it for 10 min and keep constant at 50 °C;
7. Sample number: 8 pieces of syringe of 100 ml;
8. Temperature range: room temperature-99.9°C;
