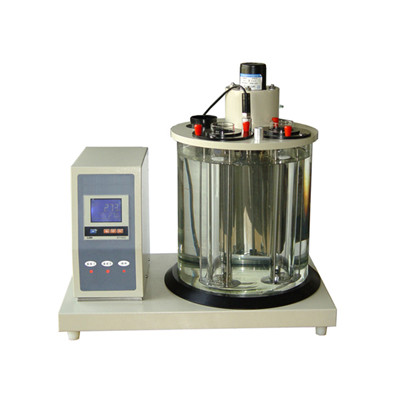

DSHD-1884 Petroleum Products Density Tester

1.DSHD-1884 Petroleum Products Density Tester DSHD-1884 石油产品密度试验器 C7
关键词：Petroleum Products Density Tester, Density tester
A: oil density tester, petroleum products density apparatus
A:Brief description:
DSHD-1884 Petroleum Products Density Tester is designed according the national standard of People's Republic of China GBT1884 Test Methods for Density of Petroleum Oils and Liquid Petroleum Products (Density Meter Method).
DSHD-1884 Petroleum Products Density Tester is applied to determine the density of crude petroleum and liquid petroleum products.
B:Main technical specifications and parameters
1. Power supply: AC 220V±10%, 50 Hz
2. Bath cubage: diameter 300 mm×340 mm
3. Test tube: 500 ml,1000ml(1000ml need to be customized)
4. Heating power: 700 W, 1000 W
5. Temperature controller:
(1) Temperature controlling range: 0 °C-100 °C
(2) Temperature controlling accuracy: ±0.2 °C
(3) Temperature sensor: Industrial platinum resistance; its scale number is Pt100
6. Thermometer: It is a total immersed mercury thermometer having scale division of 0.2 °C
7. Ambient temperature: -10 °C-+40 °C, Temperature fluctuation no more than 2 °C
8. Relative humidity: no more than 85%
