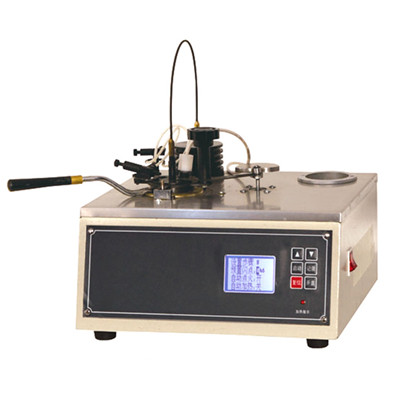

DSHD-261-1 Pensky-Martens Closed Cup Flash Point Tester

1.Power supply:AC( 220±10% )V, 50Hz.
2.Heating device:(1) The furnace is silicon carbide material.Power is 600W heating wire.
　　 (2)The heating power is adjustable from 0 W to 600W.
3.Rate of sample's heating up :Procedure A: (5-8 )°Cmin.
　　　　　　　　　　　　 Procedure B :(1-1.5)°Cmin.
　　　　　　　　　　　　 Automatically control
4.Electric stirring device :(1)Stirring motor:(BYGH101stepping motor)
(2) Driving mode: flexible shaft
(3) Stirring vane size: 8mm×40mm
5.Stirring rate:Accord with the requirements of GBT 261-2008.
(1) (90-120 ) turnsmin,suitable to test procedure A.
(2)(250±10 ) turnsmin,suitable to test procedure B.
6.Igniting device: (1) Igniting source: gas(or other civilian fuels,the same below)
(2) Bore diameter: 0.8mm
7.Temperature testing probe :PT100
8.Ambient temperature : no more than 35°C
9.Relative humidity: no more than 85%
10.Power consumption of overall unit: no more than 650W
