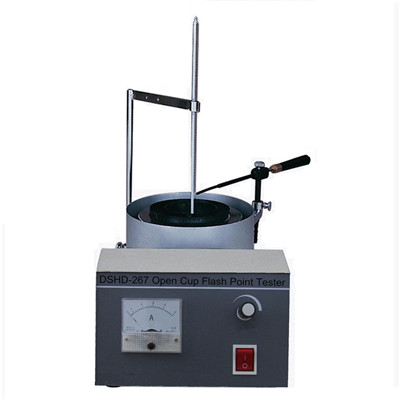

DSHD-267 Open Cup Flash Point Tester

A:Brief description:
DSHD-267 Open Cup Flash Point Tester is designed according the National Standard GBT267 " Test Methods for Flash Point and Fire Point of P etroleum Products (Open Cup Methods)" and Industry Standard of Petrochemical SHT0318 " Technical Requirements for Open Cup Flash Point Tester" .
DSHD-267 Open Cup Flash Point Tester is applies to determine the flash point and fire point of lubricating oil and Dark petroleum products.
B:Technical parameters
1. Power supply: AC 220 V±10%,50Hz;
2. Outer crucible:
(1) Material: Carbon structural steel;
(2) Diameter of upper opening: diameter 100±5 mm;
(3) Height: 50±5 mm;
(4) Diameter of bottom: diameter 56±2 mm;
3. Inner crucible:
(1) Material: Carbon structural steel;
(2) Diameter of upper opening: diameter 64±1 mm;
(3) Height: 47±1 mm;
(4) Diameter of bottom: diameter 38±1 mm;
(5) Scale line: there is a line 12 mm away from the rim of upper opening and a line 18 mm away from the rim of upper opening.
4. Gas tube: the diameter of nozzle isdiameter 0.8~diameter 1 mm. The inner surface of tube is smooth and it can adjust flame to 3 to 4 mm.
5. Heater: Heated by an electric furnace. Heating power is 1000 W and adjustable.
6. Thermometer: 0~360 °C; each scale division is 1 °C. It conforms to GBT514.
7. Ambient temperature: no more than 35 °C;
8. Relative humidity: no more than 85%;
9. Total power consumption: not more than 1100 W;
