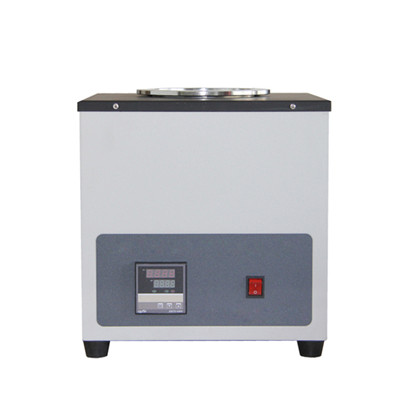

DSHD-30011 Carbon Residue Tester(Electric Furnace Method)

A:Product Introduction:
　 DSHD-30011 Carbon Residue Tester is designed according industry standard of People's Republic of China SHT0170 Test Method for Carbon Residue (Electric Furnace Method).
Its function is to determine the carbon residue of lubricant oil, heavy liquids fuels and other petroleum products as per SHT0170.
B: Main technical specifications and parameters:
1. Relative humidity: no more than 85%
2. Heating mode: electric furnace
3. Total power consumption: no more than 2000 W
4. Power supply: AC 220 V±10%, 50 Hz
5. Temperature controlling accuracy: ±5 °C
6. Steel bath type: One furnace with four holes
7. Ambient temperature: room temperature-35 °C
8. Temperature controlling range: 0°C-520 °C
9. Heating power: three groups, 300 W + 600 W + 1000 W
