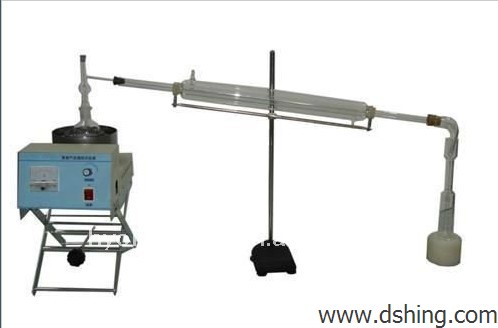

DSHD-3146 Benzene Products Distillation Tester

B: Main technical features:
1. Heating power of electric furnace for distillation is 1000 W; Equipped with a up and down device; Heating power can be continuously adjusted; heating power is shown by a ampere meter;
2. The types, specifications and sizes of distillation flask and refrigeration device are in accord with GBT3146.
3. Desktop structure; simple design, convenient installation, and complete accessories, you can make distillation determination for benzene products immediately when you get the instruments.
C: Main technical specifications and parameters
1. Relative humidity: no more than 85%;
2. Power supply: AC 220V±10%, 50Hz;
3. Distilling tube with one bulb: as per GBT 3146;
4. Ambient temperature: -10~+35°C;
5. Total power consumption: not more than 1100 W;
6. Heating system: heating power of electric furnace is 1000 W and heating rate can be continuously adjusted.
7. Distillation flask: made of harden glass; it can endure a temperature of more than 500 °C;
8. Thermometer: Each one for 70~90°C, 100~120°C, and 125~150°C; scale divisions of them are 0.1 °C; they are used to determine benzene, toluene, and xylene.
9. Refrigeration device: its total length is 8000 mm and covered with water cooling tube of 4500 mm. It is also equipped with a bending tube and a reducing graduated flask.
