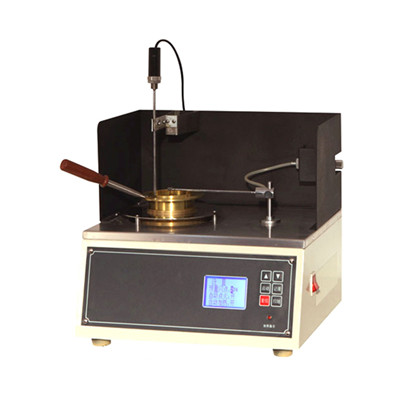

Contact SupplierC: Main technical specifications and parameters
1.Power supply: AC(220±10%)V·50Hz.
2.Heating device: Electric furnace heating, no naked fire, explosion prevented.The power is adjustable from 0W to 600W. The max heating temperature can reach 400°C.
3.Temperature control: Single chip machine.The heating rate can meet the requirement of GBT 3536-2008 and ASTM D92.
4.Temperature display: LCD screen shows temperature parameters. The range is 0°C-400°C, accuracy is 0.1°C.
5.Flame application device: Search the flash point automatically.
6.Temperature sensor: PT100 RTD
7.Ignition device: (1) Ignition source: coal gas(or civil gas,the same below)
(2) Bore diameter of spout: 0.8mm
8.Ambient temperature: (-10-50)°C
9.Relative humidity: no more than 85%
10.Overall power consumption: no more than 650W
11.Overall dimension: 340mm*320mm*450mm (L*W*H, Temperature sensor is included)
D:More Open Cup flash point tester:
