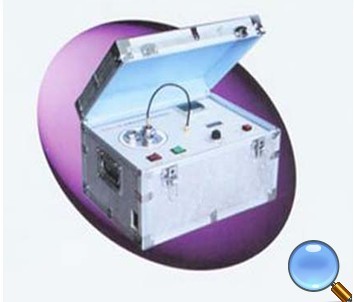

DSHD-421 Insulating Oils Volumetric Resistivity Tester

A:Product Introduction:
　 DSHD-421 Insulating Oils Volumetric Resistivity Tester is a new instrument specially developed for resistivity determination using the active bridge principle as per the Industry Standard of People's Republic of China DLT421-91 "Test Method for Volume Resistivity of Insulating Oils". Equipped with parameters measurement system and oil cup heating control system
DSHD-421 Insulating Oils Volumetric Resistivity Tester can time, read readings and save test data automatically. So as to achieve the advantages of simple structure, excellent linearity, high sensitivity, stability and safety. Compared with the instrument using voltage or current method, the better it is.
Excepting to determine the volume resistivity of insulating oils, DSHD-421 Insulating Oils Volumetric Resistivity Tester can also used to determine resistivity of transformer oil and lubricating oils.
Further more, DSHD-421 Insulating Oils Volumetric Resistivity Tester is the best choice to determine volume resistivity of lubricating oils in the power industry, petroleum industry, scientific research institutes, and relative factories and companies.
B: Main technical specifications and parameters:
　(I)Operation condition
　1. Ambient temperature: 0°C-40°C
　2. Relative humidity: no more than 85%
　3. Power supply: AC 220V±10%, 50Hz±1Hz
　(II)Measurement parameters
　1. Measurement voltage: DC 500 V
　2. Measurement range: 10 8 -19.99×10 13 O·cm
　3. Repeatability:
　(1) more than 1012 O·cm: no more than 25%
　(2) less than 1012 O·cm: no more than 15%
　4. Heating power for temperature control: 300 W
　5. Temperature controlling range: 30°C-100°C
　6. Temperature controlling accuracy: ±0.5°C
　7. Measurement error: no more than ±10%
　8. Measurement electrode cup: 3 pieces
