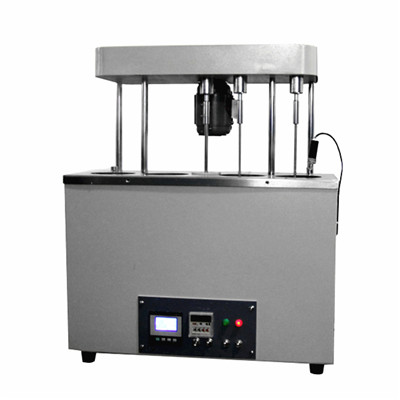

DSHD-5096 Corrosion Tester

A:Product Introduction:
DSHD-5096 Corrosion Tester is designed according the standards of GBT 11143,GBT 5096 and SHT 0023. It is a multipurpose corrosion tester for petroleum products.
DSHD-5096 Corrosion Tester can evaluate the anti-corrosive characteristic of inhibited mineral oil, especially the steam turbine oil mixed with water to iron parts as per GBT 11143 Standard test method for rust-preventing characteristics of inhibited mineral oil in the presence of water.
DSHD-5096 Corrosion Tester also can evaluate the corrosion degree of aviation gasoline, kerosene, aviation turbine oil, motor gasoline, tractor fuel, cleaning solvent, distillate fuel, lubricating oil, etc to copper and silver.
B: Main technical specifications and parameters:
1. Power supply: AC220V±10%, 50Hz
2. Temperature sensor: Pt100 industrial platinum resistance
3. Temperature controlling range: Can be set 0°C-100°C casually
4. Temperature controlling accuracy: ±1°C
5. Temperature display: LED digital display
6. Heating power of temperature control: 600W
7. Auxiliary heating power: 1000W
8. Time controlling range: Can be set 1min-24hour casually
9. Time display: LED digital display
10. Sample hole: 4 holes
11. Ambient temperature: Room temperature-35°C
12. Relative humidity: no more than 85%
13. Overall Power Consumption: no more than 1800W
