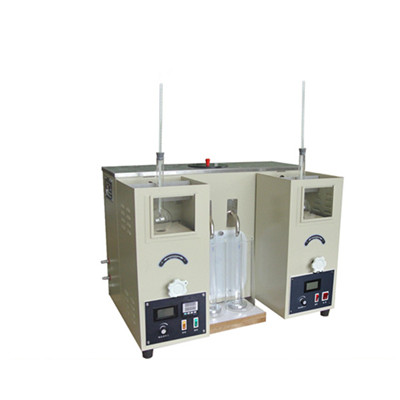

DSHD-6536A Distillation Tester

B: Main technical features:
1.The instrument adopts double units working mode, can do test for one sample as well as two samples which having the same specification or different specifications.It highly improves the work efficiency.
2.It adopts two groups of independent digital temperature controller, heater, electric stirrer to constitute two constant temperature baths. Each bath temperature can be adjusted and controlled independently.The temperature in the bath is uniform,can fully meet the requirements of test.
3.It adopts special heating furnace to ensure the safety of test. Heating power can be stepless adjusted to meet the requirements of test.
C: Main technical specifications and parameters
1.Power supply: AC(220±10%)V, 50Hz
2.Heating power of electric furnace: 1000W×2, stepless adjustable.
3.Capacity of measuring cylinder: 100ml, division value is 1ml.
4.Distillation flask: 125ml,meet the requirements of GBT 6536
5.Thermometer:Stick type, complete immersion, scale range for each:(-2~300)°C, (-2~400)°C
6.Active plate of electric furnace: silicon carbide, bore diameter is: diameter 32mm, diameter 38mm, diameter 50mm.
7.Temperature controller:1) Control range: (room temperature+10)°C-60°C
　　　2) Accuracy: ±0.5°C
　　　3) Temperature display: LED
Notification: The temperature control is to control the temperature of condensate in the condenser pipe.
8. Ambient temperature: no more than 35°C
9.Relative humidity: no more than 85%
10.Overall power consumption: no more than 2200W
11.Overall dimension:760mm×520mm×500mm
