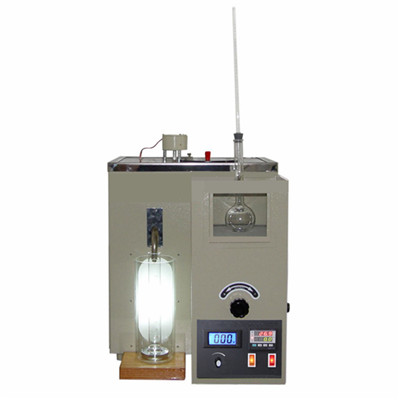

DSHD-6536C Low-temperature Distillation Tester

B: Main technical features:
1.The electrics parts are controlled by controlling case.
2.The controlling case is made of cold rolled steel. It has an observation window and a built-in furnace. The electric part is at the lower section of the controlling case.
3.The furnace part is composed of SiC furnace base, heater of 1000W220V, and SiC plate. The position of furnace can be adjusted by rotating the up and down knob on the controlling case, so that you can adjust the relative position of distillation flask and the opening of condensation tube. The heating power can be adjusted by rotating the voltage adjusting knob.
4.The refrigeration bath is made of stainless steel. It contains heating device, refrigeration device, temperature measuring device and stirring device. The stirring device is driven by a motor.
5.The dimension of condensation tube complies with GBT6536.
C: Main technical specifications and parameters
1.Power supply: AC 220 V±10%, 50 Hz
2.Heating power: 1000 W
3.Graduated flask cubage: 100 ml. Each scale division is 1 ml.
4.Distillation flask: 125 ml, as per GBT6536.
5.Thermometer: Total immersion. They are from -2 to 300 °C and from -2 to 400 °C. The scale divisions of them are 1 °C.
6.Moving plate: Made by SiC. Diameters of holes are diameter 32mm, 38mm, and 50mm.
7.Temperature controller:
　　(1) Range: 0 °Cto 60 °C;
　　(2) Temperature accuracy: ±0.5°C
　　(3) Temperature display mode: Digitally displayed by LED
8.Ambient temperature: no more than 30°C
9.Relative humidity: no more than 85%
10.Refrigerated compressor: New-type refrigeration compressor
11.Total power consumption: no more than 2500 W
