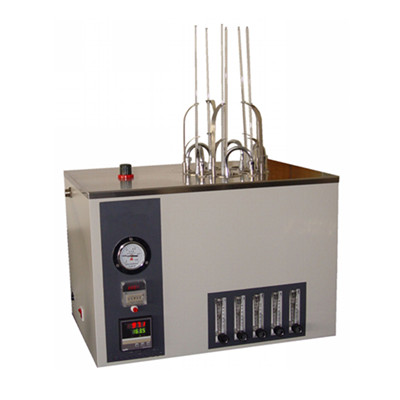

DSHD-8019A Aviation Gasoline Existent Gum Tester

A:Brief description:
DSHD-8019A Aviation gasoline Existent Gum Tester is specially used to determine existent gum in the aviation gasoline and vehicle gasoline.
DSHD-8019A Aviation gasoline Existent Gum Tester is designed according the national standard of People's Republic of China GBT8019-2008 Test Method for Existent Gum of Fuels (Jet Evaporation Methods).
B:Technical parameters
1. Test hole: 5 pieces
2. Size: 590 mm×480 mm×340 mm
3. Power supply: AC 220V±10%, 50 Hz, 3500 W
4. Size of test hole: diameter51 mm×70 mm
5. Working temperature: 160~165 °C
6. Flow rate at nozzle outlet: 600 mls for each hole
7. Temperature display: digitally displayed
8. Flow rate display: It is shown by float ball type air flow meter
9. Working pressure of air decompression valve: 0.07 MPA
10. Temperature controlling method: automatic temperature controlling
11. Evaporation bath type and size: Aluminum block; diameter260 mm×130 mm
