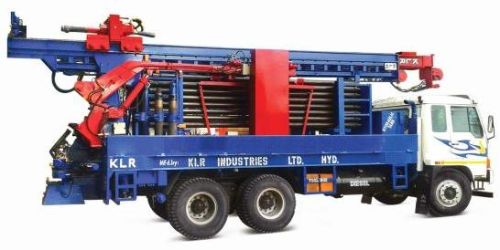

DTH-1500 Double Automatic Drill Rod Loading Water Well Drill Rig

Get Latest Price

Driven TypeHydraulic
CertificationCE ISI
Brand NameKLR
ConditionNew
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

KLR Industries Limited

Cherlapalli, Hyderabad, Telangana

5.0/5

(1)

View Number

Member Since 4 Years
Nature of Business Manufacturer
GST No. 36AABCK7920K1ZC

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Country of OriginIndia
Brand NameKLR
Driven TypeHydraulic
ConditionNew
CertificationCE ISI
FeatureHigh Strength, High Performance
Number Of FlowerKLR DTH-1500 Double Automatic Drill Rod Loading Water Well Drill Rig

We have been able to develop a KLR Auto Loader as per the latest technological advancements. These are known for their high performance, sturdy construction, and heavy rod handling capacity. This is suitable for hole dia 6.5” (continuous), 9”, 10”, and 12”(overburden) up to a depth of 1500 feet. The rotary head is powered by one hydraulic motor to ensure optimum functionality which is suitable for soft/hard formations.

Technical Specifications

Technical Data	Description
Hole Diameter	6.5"(Continuous)9",10" and 12"(Over burden)
Depth	1500 feet
Truck	2518 or 2523 or 25.280 or 31.23 / As per customer request.
Prime Mover	Truck engine or As per customer request.
Application	Water Well Drilling Rig
Formation	Soft / Hard
Mast	Hydraulic cylinder with pulley and wire rope \| Maximum Pull up force - 15500 kgs \| Maximum Pull down force - 7500 kgs \| Reeving Ratio 1:3 \| Maximum Pull up speed - 45 meter / minute \| Maximum Pull down speed - 60 meter / minute
Rotary Head	Max speed: 0- 170rpm \| Max speed: 0- 170rpm
Hydraulic system	Maximum Working pressure 280 kg/cm2 \| Pumps: Load sensing
Hydraulic oil cooler	70gpm / 120gpm
Break out wrench	Maximum Torque 500kg.m2 \| Cylinder bore 80mm / 100mm \| Stroke 300mm / 350mm
Leveling jacks	Four Box Hydraulic leveling jacks
Water injection pump	Triplex reciprocating pump powered by hydraulic motor
Optional attachments	Shock sub, Stem lock, hole sweeper, Dust collector, Digital controls, Auto drilling, Auto Rod charger, GPS system, Driller AC cabin, Data logging system, Welding generator, Six rod carousal and mud pump.
Rod changer	PLC operated rod changer to handle single rods with 1000 kgs. capacity pull up winch to carry drill rods, casings and hammer tools.
Mast raising cylinder	Bore: 100mm2 \| Stroke: 800mm \| Quantity: 2 No's
Air compressor	1200 cfm - 320psi / 1100 cfm - 300psi
Air line lubricator	18 liters
