DTH Hammer (Prithvi-55)

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Our DTH Hammer (Prithvi-55) is suitable for producing holes of 5 1/2" to 6" (140mm to 152mm) compatible with QL50 button bit without foot valve. We provide DTH Hammer has gain popularity across the globe due to its superior quality, optimum functioning and high reliability. We stand amid the most distinguished DTH Hammer Manufacturers, Suppliers and Exporters from Telangana, India. We always deliver DTH Drilling Hammer within the stipulated time period.

View More Details

Send Enquiry

Specifications

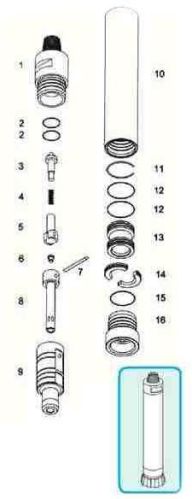

Description	Part No.
Coupler	P55-QL-001
Coupler O Ring	P55-QL-002
Check Valve	P55-QL-003
Check Valve Spring	P55-QL-004
Air Distributor	P55-QL-005
Choke	P55-QL-006
Retainer Pin	P55-QL-007
Control Tube	P55-QL-008
Piston	P55-QL-009
Hammer Case	P55-QL-010
Circlip	P55-QL-011
Guide Bush O Ring	P55-QL-012
Guide Bush	P55-QL-013
Bit Retainer Ring	P55-QL-014
BR Ring O Ring	P55-QL-015
Front Chuck	P55-QL-016

Technical Specification

Weight		Outside Diameter		Hammer Length		Hammer Length with Bit
Weight		Outside Diameter		Hammer Length		Bit Closed		Bit Extended
Kg	Ib	Mm	Inch	Mm	Inch	Mm	Inch	Mm	Inch
68	145	126	4,72	990	38,87	1085	42.7	1125	44.4
