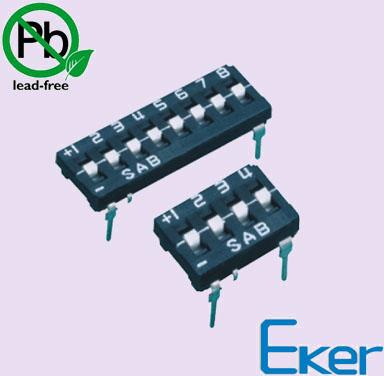

DTH Tri-state Dip Switch, Brand Name : Eker, Max. Voltage : 50VDC

MOQ1000 Piece(s)
Brand NameEker
Max. Voltage50VDC
Country of OriginShenzhen
Max. Current100mA
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Brand NameEker
Max. Current100mA
Max. Voltage50VDC
Country of OriginShenzhen
CircuitSPDT
Operating Temperature-25℃--+70℃
ActuatorRaised
Model NumberDTH SERIES
Mechanical Life2000 cycles

dth series dip switch:
dip switch soldering
hand soldering:soldering iron 30w at under 350°c/3sec.max.or at 270°c/5sec.max.
reflow soldering:260°cwithin 30 sec.in-line or batch system
wave soldering:260°c /10 sec.max
l and g type:un-washable and un-accept reflow process.
dip switch mechanical
operation force: 1000g max.
operation temp: -40°c to +85°c
storage temp: -40 °c to +85°c
mechanical life: 5,000 cycles
dip switch electrical
electrical life: 2,000 cycles per switch 24vdc, 25ma
non-switching rating: 100ma, 5000vdc.
switching rating: 25ma, 24vdc.
contact resistance: 50 max. at initial.
insulation resistance: (at 500vdc)1000 min after life test
dielectric strength: 500vac/1minute
many different kinds of dip switches, please contact us for more detail information.
