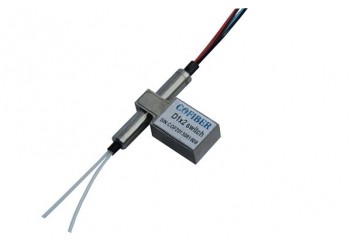

Dual 1x2 Single Mode Mechanical Fiber Optic Switch

Features
low insertion lose
unmatched low cost
high channel isolation
highly stability and reliability
epoxy-free optical path
latching or non-latching
​​​​​​​
applications
optical signal routing
optical network protectionrestoration
transmitter and receiver protection
network test system
instrumentation
configurable optical adddrop
d1x2 optical switch, which is famous for its great performance, low insertion loss and compact dimension :27.0x(w)12.6x(h)7.5. it is an ideal component for oadm, oxc,system monitor and protection. With compact package, it could be easy to integrate into a high density optical communication system.
performance specifications
model number unit d1x2
wavelength range nm 1260-1650
testing wavelength nm 1310149015501625
insertion loss db typ:0.5 max:0.8
return loss db ≥50
cross talk db ≥55
polarization dependant loss db ≤0.05
wavelength dependant loss db ≤0.25
temperature dependant loss db ≤0.25
repeatability db ≤±0.02
operating voltage v 3.0 or 5.0
lifetime time ≥107
switching time ms ≤3
transmission time mw ≤500
operating temperature ºc -20~ +70
storage temperature ºc -40~ +85
weight 9 16
dimension mm (l)27.2x(w)12.8x(h)8.5(tol0.1~0.2mm)
