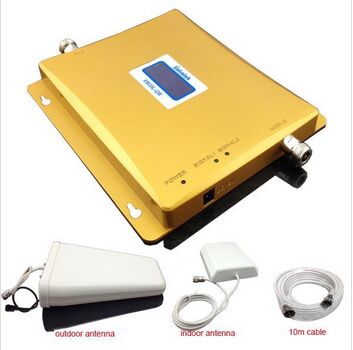

Dual Band Cellular System

Brand name: lintratek model number: kw20l-gw gain: 65dbi output power: 20dbm frequency: ul: 890-9151920-1980 mhz dl: 935-9602110-2170mhz coverage: 700-1000 sqm connector: n female connector certificate: ce,iso,rohs quality warranty: two year product size: 195*180*20 mm packing size: 320*205*60mm
model no
kw20l-gw
parameter data
uplink
downlink
frequency range
gsm+wcdma
890-9151920-1980 mhz
935-9602110-2170mhz
output power
20 ±2dbm
20 ±2dbm
gain
60 ±2 db
65±2db
bandwidth
25m+60m
ripple in band
gsm ≤5db
wcdma≤5db
spurious emission
9khz~1ghz
≤ -36 dbm
1ghz~12.75ghz
≤ -30 dbm
vswr
≤3
mtbf
>50000 hours
power supply
ac:100~240v, 50 60hz;dc:5v 1a
power consumption
impedance
50 ohm
mechanical specification
rf connector
n-female n
dimensions (d*w*h )
195*180*20 (mm)
net weight
packing size (d*w*h )
320*205*60 (mm)
gross weight
installation type
wall installation
environment conditions
ip40
humidity
operating temperature
-10℃ ~ 55℃.
