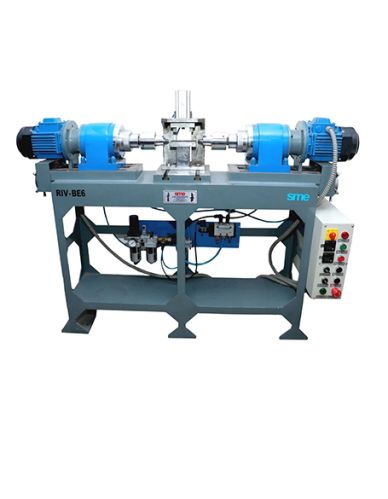

Dual Both End Riveting Machines

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

We offer a wide range of Both End Riveting Machines. These are developed in conformity with the defined industry standards, using the quality tested raw materials and advanced technology. These....

View More Details

Send Enquiry

Company Information

S M Engineers

Sector 20, Faridabad, Haryana

View Number

Member Since 12 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

We offer a wide range of Both End Riveting Machines. These are developed in conformity with the defined industry standards, using the quality tested raw materials and advanced technology. These machines are widely used for forming the rivet head at both ends simultaneously, which improve the productivity, maintain good quality of riveting and avoid fixture changeover

Product Details:

Smooth and crack free surface finish
Rivet and mating parts experienced less internal stress
No bending or swelling of rivet shank as very less axial load is applied
Very low force press less than 20% compared to any other conventional method
Cost effective through small size
Less power consumption

Specifications:

Material: MS

Additional Information:

Item Code: RIV-BE6 / RIV-BE8 / RIV-BE12H
Pay Mode Terms: T/T (Bank Transfer)
Port of Dispatch: Faridabad
Production Capacity: 5000 to 10000
Delivery Time: 2 to 3 weeks
Packaging Details: Wooden Box

Product Details:

Model No.	RIV-BE6	RIV-BE8	RIVBE12H
Riveting Capacity	up to 6 mm	up to 8 mm	up to 12 mm
Throat Depth	125 mm	140 mm	150 mm
Shut Height(max)	200 mm	300 mm	400 mm
Stroke Adjustment	35 mm	40 mm	45 mm
Cycle Time Adjst	0-9.99 sec.	0-9.99 sec.	0-9.99 sec.
Base Area	300×1250	300×1350	300×1450
Motor(H.p)	1.0+1.0	1.5+1.5	1.5+1.5+2.0
Air Pressure	5-6 kg./cm2	5-6 kg./cm2	20-30 kg./cm2 PR.
