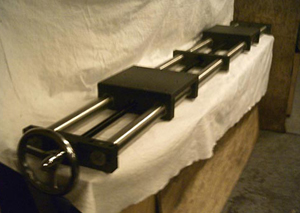

Dual Carriage Slides

These self-centering slides provide dual platforms for smooth repeatable positioning, of instrumentation, tooling, and equipment via a rigid slide mounting arrangement.
A turn of the hand-wheel advances the slide tables toward, or away from the slide center. As an option the dual carriage slide can be provided with one driven table and one free sliding table. This arrangement has been proven to be useful in supporting large work pieces.
The extremely robust construction, includes oversized guide rails and high PV bearings allow mounting in an extended horizontal position. The slides also allow for a vertical mounted slide to be attached providing movement in the “X” and Z” axis’s.
Standard options include Hand-wheel choices, position locks, Engraved dials, and digital position indicators. Use Generic Slides – Quality manufactured Dual Carriage Slides, as an effective and cost efficient solution to your instrumentation, manufacturing and Automation systems needs.
Applications Include:
Part centering for robotic pick-up
Automation devices
Dual work piece vises for machine tools
Optics adjustments
Laser positioning
Positioning label dispensing equipment
Positioning marking equipment
Non-destructive testing
Fixturing tooling and part locating nests
Part scanning
Automatic screw drivers
Insertion equipment
Fluid dispensing equipment
Water-jet cutting
Routing, drilling and milling spindles
and tooling
Features:
Travels up to 72 inches
Table widths from 2” to 18”
Delicate to course adjustments
Smooth motion
Construction:
Position Lock
Rolled thread, acme or ball screw drive
Adjustable backlash drive screw nut
Heavy section construction
Material options
Radically oversized guide rails
High PV contaminant resistant bearings.
