Specification：

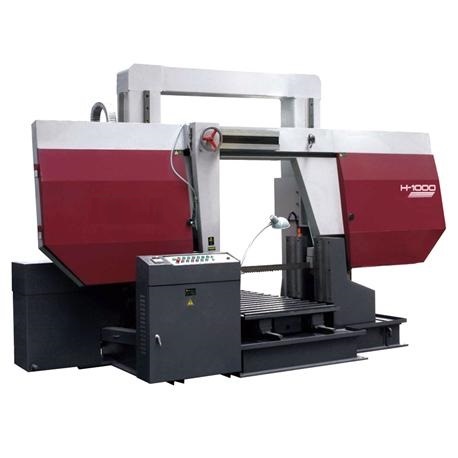

The automatic and semi-automatic dual-column horizontal sawing machine series designed by our company are incorporated with advantages of reasonable structure, stable and reliable performance, and high precision. It is an ideal equipment for sawing/cutting of medium/small lots
Summary：Standard Features:
1. Blade cleaning brush.
2. Working light
3. Manual work height control
4. Power roller table 1M long
5. One piece of bi-metal saw blade.
6. One set of tools
Optional Equipment:
1. Automatic chip conveyor.
2. INVERTER
3. Hydraulic blade tension
4. Roller stock table 2M long
5. Laser projector
5. Power roller table, 2M long
MODEL | H-1000 | H-500 | H-600 | |
MAX.CUTTING | ● | 1000mm | 500mm | 600MM |
CAPACITY | ▅ | 1000×1000mm | 500×500mm, | 600×600mm |
SAW BLADE | Speed | 15-80 (INVERTER) | 26/41/60 | 25/43/68 |
Size | 10000×67×1.6 | 6000×41×1.3 | 7000×41×1.3 | |
Guides | Carbide and bearing blade guides | Carbide and bearing blade guides | Carbide and bearing blade guides | |
Cleaning | Power wire brush & flood coolant | wire brush & flood coolant | wire brush & flood coolant | |
Tension | Manual | Manual | Manual | |
MOTOR OUTPUT | Blade | 11kw | 5.5kw | 7.5kw |
Hydraulic | 2.2kw | 1.5kw | 1.5kw | |
Coolant | 0.12kw | 0.075kw | 0.075kw | |
WORK FEEDING | Power feeding | Power feeding | Power feeding | |
WORK VICE | Hydraulic | Hydraulic | Hydraulic | |
MACHINE WEIGHT | 11000kg | 2680kg | 3160kg | |
PACKING SIZE(L×W×H) | 4260×2300×2900 | 3000×1100×2100 | 3400×1100×2200 | |
|
| 2SETS/20", 4SETS/40" | 2SETS/20", 4SETS/40" | |
