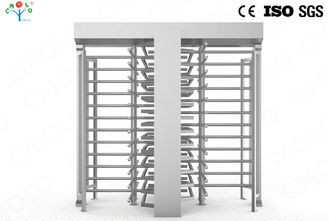

Dual Door Full Height Turnstiles

We are offering semi-auto full height turnstile (cpw-222as)
with semi-auto structure, after turnstile receives a legal signal, people need to manually push the arms to finish one passing action. The turnstile works stably, safely, and reliably.
1. Function specifications:
both directions can be set as controlled mode or free mode.
No mode & nc mode can be switched over by users easily & freely.
Self-recovery function: the machine will recovery automatically with invalid counting if passage is not completed within pre-set time (5 seconds default, adjustable by software).
With interface of relay switch (the dry contact signal or +12v electrical level signal or dc12v pulse signal of pulse width � 100ms, driving current � 10ma), compatible with all kinds of access controllers.
Each machine can be set by physical address (optional).
Equipped with free control software for man-machine interface & control command sdk.
2. Framework specifications:
framework: 304 (standard) 316 grade stainless steel
thickness of ply: 1.5mm (standard) 2.0mm
finishing: brushed surface (standard) polishing surface
arm length: 500~700mm
arm diameter: 38mm (standard) 48mm
max tolerance of arm: 30kg
driving force of arm: 3kg
3. Electric specifications:
power voltage: ac220v ac85~230v
operation voltage: dc24v
operation current: 3a 5a (max)
driving motor: brushless dc motor
communication interface: rs485 (1ch) rs232 (3ch); available to can bus and ethernet (optional)
control io: relay out (6ch) level input (4ch)
transit speed: 20~35 passage minute
temperature: -20c~60c
work environment: indoor outdoor (shelter)
traffic-light indication
4. Customized features:
alternative materials, finishes and custom design
access control system integration
ticket system integration
camera system integration
thermostat system integration
