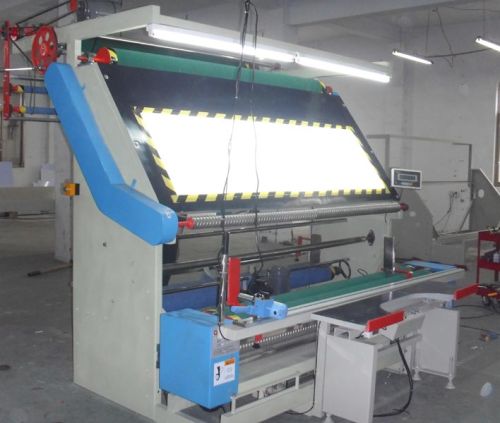

Dual Function Cloth Inspection Rolling and Plaiting Machine

We offer pl-b2 dual function cloth inspection rolling and plaiting machine.
-usage:thispl-b2 dual function cloth inspection rolling and plaiting machine is specially designed for inspecting all kinds of fabrics such as knitted fabrics,cotton,woven, teircot and so on.with this dual function of inspecting fabrics from roll to roll or roll to pile.
-technical parameters:
1).max.fabric width:2000mm-3600mm
2).diameter of fabric roll:500mm
3).max.speed:80m/min
4).main motor:1hp*3
5).edge-aligning tolerance:â±3mm
6).dimension:2150mm(l)*2300mm(w)*2500mm(h)
-characteristics:
1).auto edge-aligning system consists of edge sensor and hydraulic station has been adopted in this pl-b2 dual function cloth inspection rolling and plaiting machine which could promote the efficiency on inspection.
2).fabric tension is adjustable by the speed difference between main motors managed by inverters.
3).spiral expanding roller will be adopted according to different fabrics to spread fabrics without any curled edge.
4).high speed reaches 80m/min.
5).digital counter makes accurate fabric length in yard or meter which could be interchanged.
6).all the feeding rollers and winding rollers are driven by imported gear motors.
7)this pl-b2 dual function cloth inspection rolling and plaiting machine could inspecting fabrics from roll to roll or roll to plait pile.
8)all the speed adjustment,tension controlling and other controls are available on the control panel which offers an easy operation.
