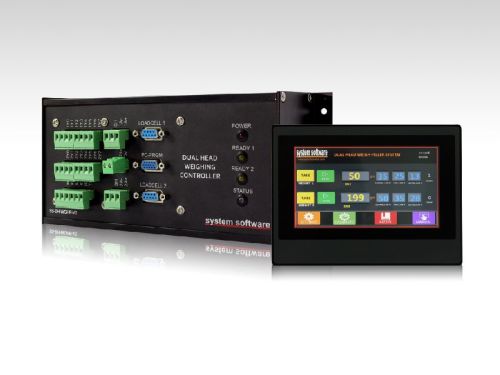

Dual Head Weighing Controller

The dual head weighing controller is the industry’s one of its kind controller designed exclusively for weighing based control systems where simultaneous control of two weighing systems is needed. The controller is designed to be fitted in the machine’s panel box. The controller uses an external HMI unit which displays all the programmed parameters in real time. the dual head weighing controller can be synchronized with several of its kind of controllers together to obtain multiple weighing controllers working together with shared resources. The firmware of this controller is designed using high performance 32-bit controllers with real-time operating system. This facilitates optimum performance of the control actions along with communication over standard industrial protocols.

Specifications:

• Direct Loadcell interface over two independent analog input channels.
• Sixteen transistor outputs of 10watt each.
• Six digital inputs.
• One Rs-232 communication port.
• One RS-485 communication port.
• Simultaneous sampling of both the Loadcell signals at high speed.
• Two Analog outputs.
• Easy to use and setup.
• Multiple recipes per weighing head.
• Auto zero tracking and adjustment.
• 24vdc operation.
• Size in mm: 220mm x 60mm x 45mm
