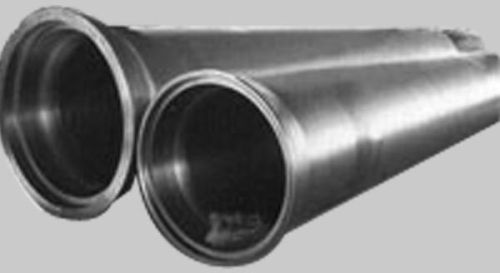

Ductile Casting Pipe Mould 21CrMo10

We offer ductile casting pipe mould.
1.material
21crmo10 and 35crmo to din17350
2. Chemical components
21crmo10
components c mn si p s cr mo cu
0.16
0.23 0.20
0.40 0.20
0.40 ã¢ï¿½â¤
0.011 ã¢ï¿½â¤
0.009 2.20
2.60 0.30
0.50 ã¢ï¿½â¤
0.20
3.smelting method
electric arc furnace + refining furnace(vacuum arc degassing)
4. Technical parameters of machining
spec.
(id mm) length
m surface roughness precision
mm concentricity mm conicity
mm
100~1200 6.5 1.6 0.1 0.08 0~1
5. Mechanical properties(according to din17350, din 21crmo10)
ã��b ã��s ã��5 ã�⨠hardness
750~850nmm2 ã¢ï¿½â¥650nmm2 ã¢ï¿½â¥16% ã¢ï¿½â¥60% 225 ã¢ï¿½ï¿½ 265hb
6. Test method and standard
test spots: half spot of wall thickness,two portraits of such spot.
Tensile test: gbt288-2002 standard.
Hardness test: gbt231 standard.
7. The standard of ultrasonic test
the forging of the mould will be ultrasonically tested as per jbt1581-1996 or equivalent standard, details as follows:
a. Without bursts, crack, shrinking hole and other defects.
B. The defect with size within 2mm can be ignored.
C. There should not have compact district.
D. Individual defect with diameter of 2~4mm is permitted, and the distance of the neighboring defects should be more than the 10 times of the bigger oneã¢ï¿½ï¿½s. For 100cm2ã¢ï¿½ï¿½ s area, the quantities of the defects with diameter of 2~4mm should not exceed 3.
The above-mentioned parameters are for reference only,we can produce various kinds of pipe mold as per customersã¢ï¿½ï¿½ requirements.
8. Package
by crate adapted to seaway.
