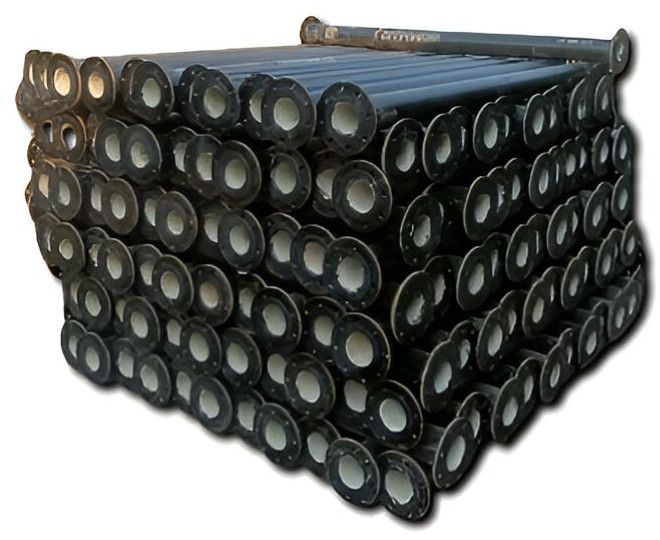

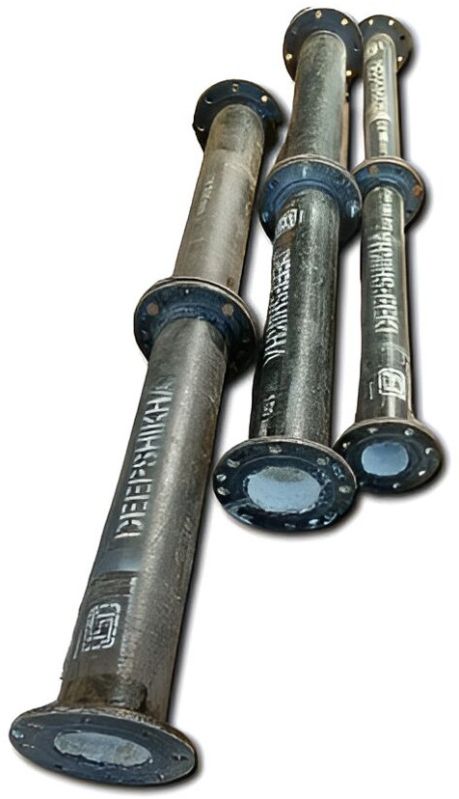

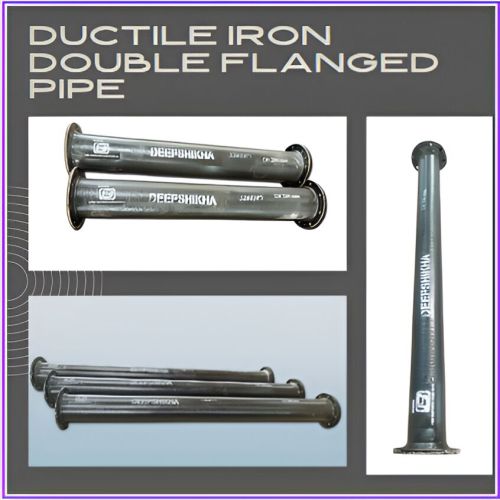

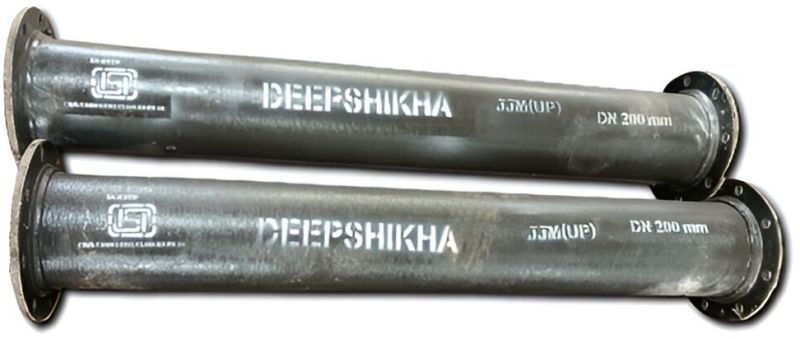

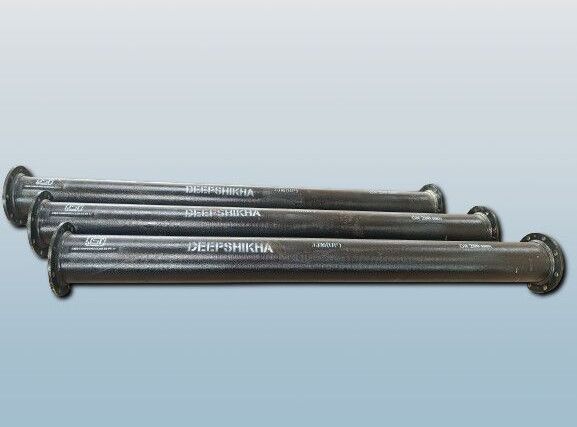

Deepshikha Polished Ductile Iron Double Flanged Pipe, Color : Black

Ductile Iron Double Flanged Pipes (DIDF) as per IS 8329:2000; For water , Gas and Sewage of Sizes from DN 80 upto and including DN 600 mm Pressure rating PN10 and PN 16, Class K9,Flanged Joint type.

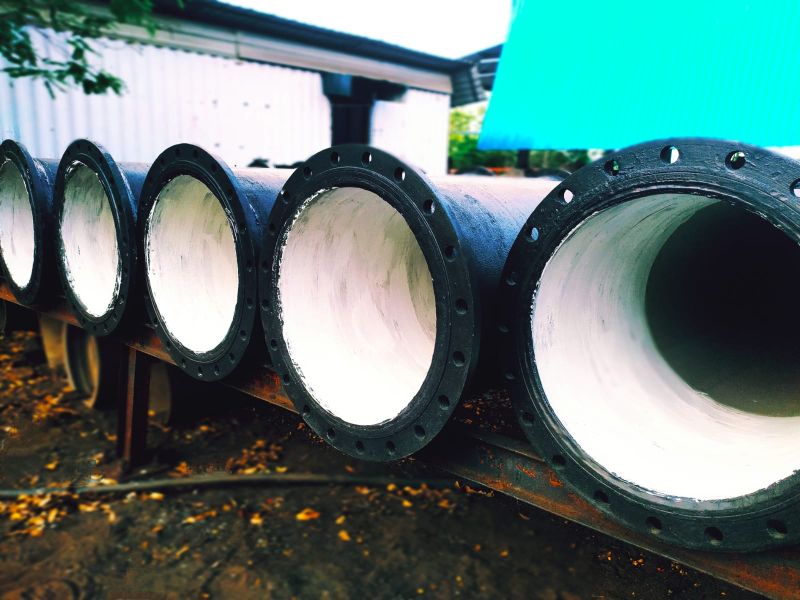

 Coatings : Pipes are generally supplied with inside Cement mortar lining and outside zinc coating followed by bitumen coat.

 Applications of CI/D I Pipe and Fittings:

• Vertical pipe line for over head tanks, Elevated service reservoir (ESR) and distribution systems.
• Fire fighting water distribution systems.
• Ash handling systems in power plants and Steel plants
• Chemical plants, Sugar plants, Cement industry etc

Dimensions and Tolerances : As per IS 8329:2000
Standard Flange Drilling PN10 and PN16 :

• Size : 80 to 600 mm
