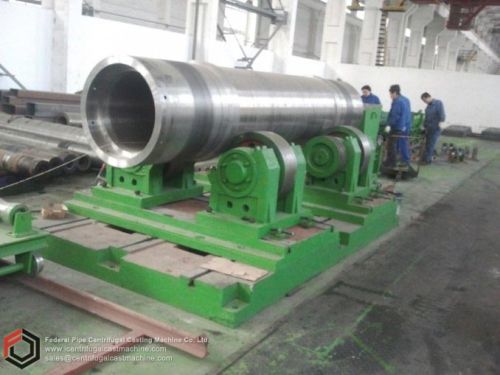

We are renowned as an eminent Manufacturer, Exporter, and Supplier of a vast range of Ductile Iron Pipe Centrifugal Casting Machine. It is used for producing metal magnesium and metal calcium. Ductile Iron Pipe Centrifugal Casting Machine is fabricated using superior quality raw material and modern technology. Ductile Iron Pipe Centrifugal Casting Machine is available with us in varied dimensions as per the requirements of clients.
Key Features :
| Item | Model | Retort Length | Material Quality | Capacity |
|---|---|---|---|---|
Alloy Retort CCM | FMGL-00-I | 45-75 kwh | ||
CCM Mould Dia | Φ200-400 mm | 1800-4000mm | 30COMO | |
Alloy Retort CCM | FMGL-00-II | 45-75 kwh | ||
CCM Mould | Φ400-550mm | 1800-4000mm | 30COMO | |
Alloy Retort CCM | FMGL-00-III | 45-75 kwh | ||
CCM Mould | Φ550-800 mm | 1800-10000mm | 30COMO | |
Alloy Retort CCM | FMGL-00-IIII | 45-75 kwh | ||
CCM Mould | Φ800-1500 mm | 1800-10000mm | 30COMO | |
Power Control Panel | HM-HT-D | |||
Heat Treatment | 12.5 meter Pit furnace | |||
Production Capacity | 80-100 pieces/8 hours shift | |||
Pipe Size Conversion | ||||
Dia (inch) | Outer Dia(mm) | Wall Thickness (mm) | Length(mm) | Weight(kg) |
Φ3 | 86±1.0 | 4.3-0.7 | 3000±10 | 24.6 |
Φ4 | 111±1.0 | 4.4-0.7 | 3000±10 | 34.4 |
Φ5 | 137±1.5 | 4.8-1.0 | 3000±10 | 41.9 |
Φ6 | 162±1.5 | 4.8-1.0 | 3000±10 | 51.2 |
Φ8 | 214±1.5 | 5.8-1.0 | 3000±10 | 81.9 |
Φ10 | 268±1.8 | 6.4-1.2 | 3000±10 | 113.6 |
Φ12 | 318±0.18 | 7.0-1.2 | 3000±10 | 148.0 |
Application : The Alloy Retort is used for Production of Metal Magnesium or Metal Calcium
